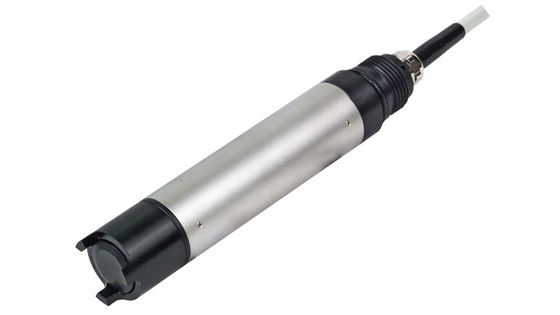

Endress+Hauser COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D

Endress+Hauser  COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D
Endress+Hauser  COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D Endress+Hauser  COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D Endress+Hauser  COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D Endress+Hauser  COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D Endress+Hauser  COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D Endress+Hauser  COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D Endress+Hauser  COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D

Large Image :  Endress+Hauser COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D

Product Details:
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: RoHs
Model Number: COS61D-AAA1A3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTON
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 500+pcs+on stock
Detailed Product Description
Measurement Range: 0 To 400 HPa Process Temperature: -5 To 60 °C (20 To 140 °F)
Process Pressure: Max. 10 Bar Abs (Max. 145 Psi) Order Code: COS61D-AAA1A3
Product Name: Oxymax COS61D Approval: Non-hazardous Area
Application/Measuring Range: Oxygen 0...20mg/l Sensor Adaption: Fixed Cable; Crimp Sleeves

Endress+Hauser COS61D-AAA1A3 Digital oxygen sensor Oxymax COS61D







Description:



Memosens optical oxygen sensor for water, wastewater and utilities

Product name : Oxymax COS61D

Order code : COS61D-AAA1A3

AA-Approval : Non-hazardous area

A1-Application/Measuring Range : Oxygen 0...20mg/l

A-Sensor Adaption : Fixed cable; crimp sleeves

3-Cable length:7m

Weight

With cable length 7 m (23 ft): 0.7 kg (1.5 lbs.)

With cable length 15 m (49 ft): 1.1 kg (2.4 lbs.)

Materials

Process connection: G1, NPT 3/4"

Sensor cable : shielded 4-core fixed cable

Cable connection to the transmitter

• Terminal connection

• optional: M12 plug

Maximum cable length : max. 100 m (330 ft, (including cable extension))

Temperature compensation : internal

Actual Dimension Standard Packing Box : 37 X 35 X 70 cm

Shipping Weight : 5.2 Kg







Additional Informaiton:



Memosens optical oxygen sensor for water, wastewater and utilities
Oxymax COS61D is a high-performance, digital oxygen sensor that offers fast, accurate and drift-free measurement. It supports your process with low maintenance, high availability and easy handling. The sensor's long-term stable fluorescence layer is exclusively oxygen-selective (interference-free), ensuring consistently reliable measurement. Thanks to Memosens digital technology, the Oxymax COS61D combines maximum process and data integrity, and facilitates simple lab calibration.









Benefits


Minimum maintenance, maximum availability

Fast, drift-free measurement for precise aeration control and process monitoring

Long-term stability for increased process safety

Outstanding performance in all aeration processes (SBR, Anamox, etc.)

Chemical-free: no electrolyte handling

Show less






Field of application


Oxymax COS61D measures the dissolved oxygen concentration in:

Wastewater treatment plants:
- O2 control in the aeration basin
- Process water treatment and monitoring

Water works:
- Status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.)
- Water quality monitoring in rivers, lakes or seas

Utilities of all industries:
- O2 control in the biological treatment
- Process water treatment and monitoring

Fish farming:
- O2 control for optimum growth conditions

Show less






Features and specifications


Oxygen
Measuring principle
Optical oxygen measurement

Application
Aeration tank, river monitoring, water treatment, fish farming

Characteristic









Common Models:



CLM223-CD0005 CPS11D-7BT21 FMU40-ANB2A2 FTL50
CLM253-CD0005 CKY10-A101 FMB53-AA21JA1FGB15B3A FTL50H
COM223-DX0005 CPM253-MR0105 FMI52-A1AB3KB5A1A FTL51
COM253-WX0005 CPA250-A00 50H50-1F0B1AA0ABAA FTL51C
COM253-DX0005 CPS11-2BT2ESA FMR231-AFCQKAA4CA FTL51H
CPM223-MR0005 CPF81D-7LH11 PMP131-A2B01A1W FTL70
CPM253-MR0005 FTL31-AA4U3BAWSJ PMC131-A15F1A1K FTL71
CPM223-PR0005 CLS15 PMC71 PMP71PMP75 FMU30
CPM253-PR0005 CLS21 PMC45-RE11F2A1K11 FMU40
COS41-2F CUS31 PMC45-RE11F2A1AL1 FMU41
COS41-4F COS41 PMC45-RE11H2A1AL1 FMU42
COS61-A1F0 CPS11D-7BA21 PMC45-RE11P1C1AH4 FMU43
COS61-A2F0 CCM253-EK0005 PMC45-RE11M2A1AL1 FMU44
COS61D-AAA1A3 CUM223/253 PMC45-RE11H3H1DL4 FMU95
CPS11D-7AA21 CLM223/253 PMC131-A15F1A1R FMU90
CPS11D-7BA2G CPS41-1AC2SSA PMC131-A15F1D14 FMR230
CPS11D-7BA41 CLS21-C1E4A PMC131-A15F1A1S FMR231
FTM51-AGG2M4A32AH CLS21-C1N2A PMC131-A15F1A1G FMR240
FTM51-AGG2M4A32AH L=500mm CLS21-C1N3A PMC131-A15F1A1Q FMR244
CPS11D-7AS21 CLS15-B1M2A PMP131-A1401A1S FMR245
CPS11D-7BT2G CLS15-A1M2A PMC71-ANA1S2GHAAA FMR250
CPS12D-7NA21 CLS15-A3D1A PMC71-ANA1P2GHAAA FMR530
