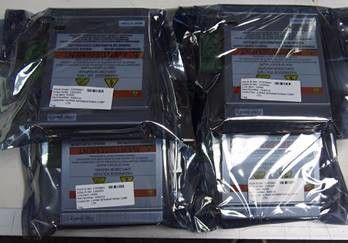

Bently Nevada 3500 15 Power Supply , 3500 15-05-05-00 106M1079-01

Bently Nevada 3500/15 Power Supply 3500/15-05-05-00 106M1079-01

The 3500 Power Supplies are half-height modules and must be installed in the
specially designed slots on the left side of the rack. The 3500 rack can contain
one or two power supplies (any combination of ac and/or dc) and either supply
can power a full rack. If installed, the second supply acts as a backup for the
primary supply. When two power supplies are installed in a rack, the supply in
the lower slot acts as the primary supply and the supply in the upper slot acts as
the backup supply. Removing or inserting either power supply module will not
disrupt operation of the rack as long as a second power supply is installed.

The 3500 Power Supplies accept a wide range of input voltages and converts
them to voltages acceptable for use by other 3500 modules. Three Power Supply
versions are available with the 3500 Series Machinery Protection System as
follows:
• AC Power
• High Voltage DC Power Supply
• Low Voltage DC Power Supply

Ordering Information
3500/15-AXX-BXX-CXX

3500/15 3500 POWER SUPPLY
127610-01 AC Power Supply Module
125840-01 High voltage AC PIM
125840-02 Low Voltage AC PIM

106M1079-01 UNIVERSAL 85-264 VAC POWER SUPPLY
106M1081-01 UNIVERSAL 85-264 VAC PIM
113M0744 UNIVERSAL 85-264 VAC AC PIM REPLACEMENT FUSE
102M3992 REPLACEMENT CONNECTOR FOR UNIVERSAL AC PIM AND CURRENT DC PIMS
