Product Details:
Payment & Shipping Terms:
|
| Unit Dimensions: | (W X L X H) : 40*35*30cm | Response Time: | 90ms |
|---|---|---|---|
| Manufacturer: | Yokogawa | Model: | EJA430E-DBS4J-917DB/KF22 |
| Stability: | ±0.1% Of URL Per 7 Years | Accuracy: | ±0.055% Of Span |
| Origin: | Japan | Warranty: | 12 Months |
| High Light: | EJA430E Yokogawa EJA Pressure Transmitter,90ms Yokogawa EJA Pressure Transmitter,Yokogawa gp transmitter |
||

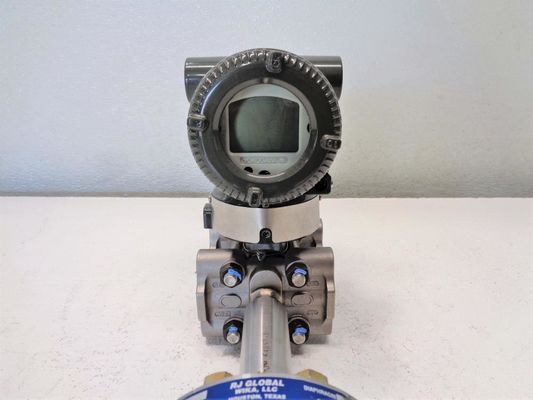

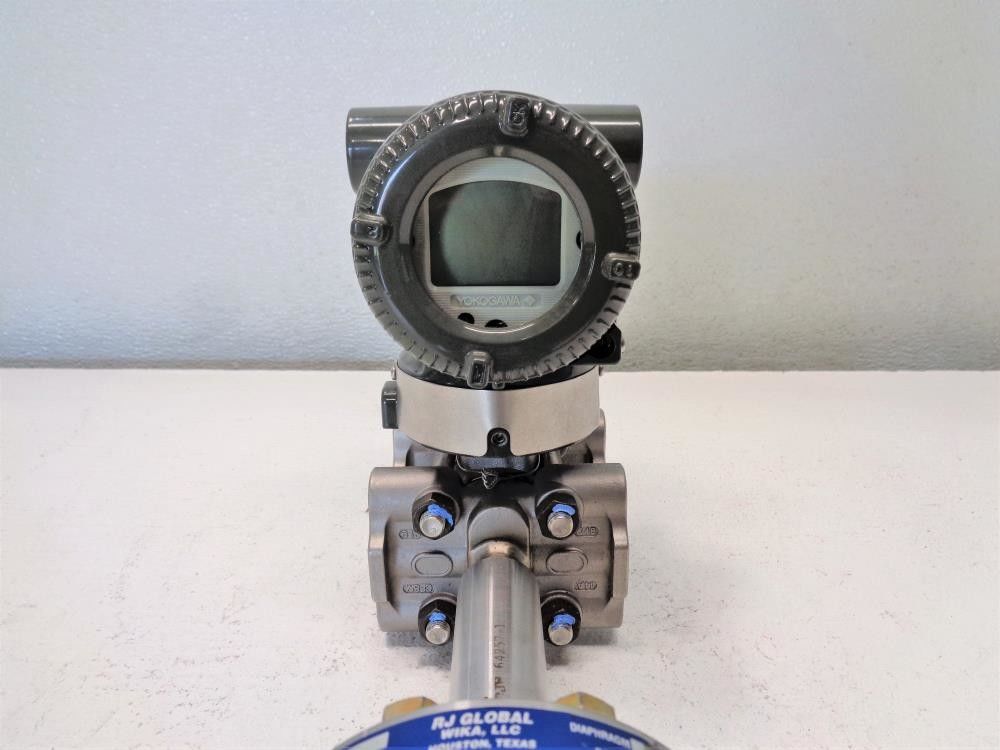

EJA430E-FAS5G-919DJ Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto
Description:
Manufacturer : Yokogawa
Product No. : EJA430E-FAS5G-919DJ/KS26/M01/T01/D3
Product type : Gauge Pressure Transmitter
EJA430E : Gauge pressure transmitter
A - Measurement span (capsule) : 0.03 to 3.5 MPa (4.3 to 500 psi)
S - Wetted parts material
Cover flange and process connector : ASTM CF-8M
Capsule : Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others)
Capsule gasket : Teflon-coated 316L SST
Vent/Drain plug : 316 SST
5 - Process connections : without process connector (1/4 NPT female on the cover flanges)
G - Bolts and nuts material : 316L SST
9 - installation : Horizontal piping and left side high pressure
1 - Amplifier housing : Cast aluminum alloy
9- Amplifier housing : M20 female, two electrical connections and a blind plug
Weight : 2.8 Kg
Shipping weight : 8 Kg
Additional Informaiton:
The EJA430E is a traditional-mount gauge pressure transmitter in the series.
EJA430E features include:
0.055% Accuracy (0.04% Accuracy optional)
0.1% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)
| Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer EJA110E | |||||
| L Capsule | M Capsule | H Capsule | V Capsule | ||
| Range | -10 to 10 kPa | -100 to 100 kPa | -500 to 500 kPa | -0.5 to 14 MPa | |
| (-40 to 40 inH2O) | (-400 to 400 inH2O) | (-2000 to 2000 inH2O) | (-70 to 2000 psi) | ||
| Span | 0.5 to 10 kPa | 1 to 100 kPa | 5 to 500 kPa | 0.14 to 14 MPa | |
| (2 to 40 inH2O) | (4 to 400 inH2O) | (20 to 2000 inH2O) | (20 to 2000 psi) | ||
| Accuracy | ±0.075% | ±0.065% | ± 0.065% | ±0.065% | |
| Degrees of Protection | IP67, NEMA 4X, and JIS C0920 immersion proof | ||||
| Certificates | FM, CENELEC ATEX, CSA, IECEx | ||||
| Output | 4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication | ||||
| Supply Voltage | BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) | ||||
| Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) | |||||
| Ambient temperature | -40 to 85 deg C (-40 to 185 deg F) (general use type) | ||||
| -30 to 80 deg C (-22 to 176 deg F) (with integral indicator) | |||||
| Process Temperature | -40 to 120 deg C (-40 to 248 deg F) (general use type) | ||||
| Maximum Working Pressure | 16MPa(2300psi) | ||||
| 3.5MPa(500psi) for L capsule with special materials | |||||
| Mounting | 2-inch pipe mounting | ||||
| Wetted parts material | Capsule | SUS316L(Diaphragm material is Hastelloy C-276), | |||
| Hastelloy C-276, Tantalum, Monel | |||||
| Cover flange | SUS316, Hastelloy C-276, Monel | ||||
| Housing | Cast aluminum alloy or SUS316 equivalent stainless steel (optional) | ||||
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
