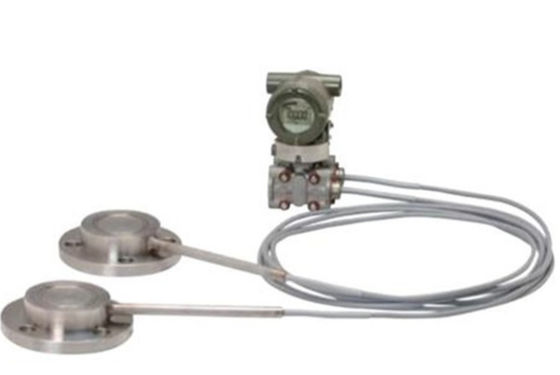

EJA118E DP Yokogawa EJA Pressure Transmitter With Remote Diaphragm Seals

EJA118E-FMSCG-914DJ EJA118E DP Transmitter with Remote Diaphragm Seals

Description:

Manufacturer : Yokogawa

Product No. : EJA118E-FMSCG-914DJ-WA13B2TW00-AA23/D3/M2W

Product Type : Diaphragm Sealed Differential Pressure Transmitter

Measurement span : -M = 2.5 to 100 kPa

S = always S

C = always C

Coverflange bolts and nuts material : G = 316L SST

Installation : -9 = Horizontal piping type and leftside high pressure

Amplifier housing : 1 = Cast aluminium alloy

Integral indicator : D = Digital indicator

Process connection style : -W = Flush type

Flange rating : A1 = ANSI class 150

Process connection size : 3 = 3-inch (80mm)

Flange material : B = 304 SST

Gasket contact surface : 2 = Flat

Wetted parts material : SW = 316L SST

Flushing connection ring : 0 = None

Extension : 0 = None

Fill fluid : A = For general use

Capillary connection : A = Side of diaphragm seal unit

2 = always 2

Capillary length : 3 = 3m

Weight : 16.1 Kg

Shipping weight : 18 Kg

Additional Informaiton:

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.

EJA118E features include:

• ± 0.2% Accuracy
• 200 ms Response Time
• Exida and TUV SIL2 / SIL3 Certified
• Local Parameter Setting (LPS)
• 10-segment Signal Characterizer
• Active Capillary Fill Fluid Density Compensation
