CPM253-PR0005 pH/ORP transmitter Liquisys Compact field device

CPM253-PR0005 pH/ORP transmitter Liquisys Compact field device
CPM253-PR0005 pH/ORP transmitter Liquisys Compact field device

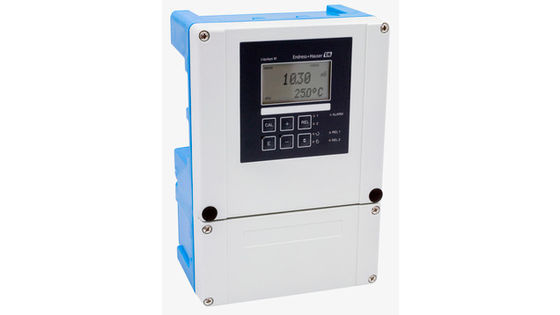

Large Image :  CPM253-PR0005 pH/ORP transmitter Liquisys Compact field device

Product Details:
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: RoHs
Model Number: CPM253-PR0005
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTON
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 500+pcs+on stock
Detailed Product Description
Input: One-channel-transmitter Output: 0/4-20mA, Hart, Profibus.
Ingres Protection: No Model: CPM253-PR0005
Product Type: PH/ORP Transmitter Liquisys Compact Field Device Origin: Germany
Manufacturer: Endress+Hauser Shipping Weight: 2.3kg

CPM253-PR0005 pH/ORP transmitter Liquisys Compact field device









Description:



Manufacturer : Endress+Hauser

Part Number : CPM253-PR0005

Transmitter for analog and digital glass and ISFET sensors

Dimensions

Panel mounted instrument: IP 54 (front), IP 30 (housing)

Field instrument: IP 65 / tightness acc. to NEMA 4X

Panel mounted instrument: 96 x 96 x 145 mm (3.78 x 3.78 x 5.71 inches)

Mounting depth: approx. 165 mm (6.50")

Field instrument: 247 x 170 x 115 mm (9.72 x 6.69 x 4.53 inches)

Weight

Panel mounted instrument: max. 0.7 kg (1.5 lb)

Field instrument: max. 2.3 kg (5.1 lb)

Material

Housing of panel mounted instrument: Polycarbonate

Field housing: ABS PC FR

Front membrane: Polyester, UV-resistant

Terminals

Cross section 2.5 mm2 (14 AWG)

Shipping Weight : 3.3 Kg







Additional Informaiton:


Liquisys CPM253 is a standard pH/ORP transmitter for all analog and digital Memosens sensors. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task.









Benefits


More operational safety: Continuous process check system, customized alarm configuration, proven Memosens interface for reliable sensor connection.

Reliable self-monitoring: Sensor check system for pH glass and reference, calibration plausibility check.

Easy to operate and service: Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, direct access for manual contact control.

Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.

Fit for every application: Numerous extensions, such as P(ID) controller, timer, etc., allow for flexible adaption to all processes.

Show less


Field of application


The Liquisys CPM253 transmitter works with all pH/ORP glass and ISFET sensors in non-hazardous areas, for example in these industries and their utilities:

Chemicals

Food & Beverages

Power & Energy

Water & Wastewater

Primaries & Metal

Liquisys CPM253 features the following protocols and interfaces:

0/4...20 mA

HART

PROFIBUS DP

PROFIBUS PA

Show less


Features and specifications


ORP / Redox
pH
Measuring principle
Sensor ORP / Redox









Application


Water, waste water, process

Characteristic
4-wire transmitter

Design
pH/ORP-field housing made of PC/ABS

Material
PC/ABS-housing

Dimension
247x170x115mm

Temperature sensor
Display and current output

Ex certification
No

Ingres protection
No

Input
One-channel-transmitter

Output
0/4-20mA, Hart, Profibus.

Additional certifications
CSA Gen. Purpose.
