Emerson Rosemount Explosion Proof Transmitter
  • name
  • name
  • name
  • name
  • name

Emerson Rosemount Explosion Proof Transmitter

MOQ: 1
Price: negotiable
Standard Packaging: carton
Delivery Period: on request
Payment Method: T/T
Supply Capacity: 1~1000pcs
Details Information
Product Description
Detail Information
Place of Origin
Singapore
Brand Name
Emerson
Certification
ROHS
Model Number
5081-P-HT-20-73
Material:
Plastic&metal
Origin:
Singapore
Conduit Openings:
3/4-in NPT
Ambient Temperature:
-4 To 149°F (-20 To 65°C)
Storage Temperature:
-22 To 176°F (-30 To 80°C)
Relative Humidity:
0 To 95% (non-condensing
Weight/Shipping Weight:
10 Lb/11 Lb (4.5/5.0 Kg)
Temperature Resolution:
0.1°C
Highlight:

Emerson Rosemount Explosion Proof Transmitter

,

NPT Explosion Proof Transmitter

,

3 4 in Explosion Proof Transmitter

Product Description

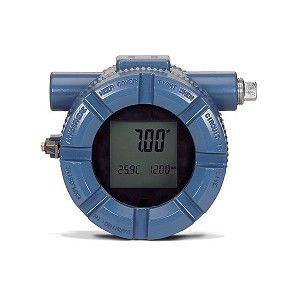

Emerson Rosemount 5081 Explosion-Proof Transmitter 5081-P-HT-20-73







Product No. : 5081-P-HT-20-73
Product type : pH/ORP Transmitter
5081 : SMART two-wire microprocessor transmitter
P : pH/ORP
HT : Analog 4-20 mA output with superimposed HART digital signal
20 : Infrared remote controller included
73 - Agency approvals : ATEX approved intrinsically safe (when used with appropriate and safety barrier)
Weight : 4.5 Kg
Shipping weight : 6 Kg




Specification:



The Model 5081 family of transmitters can be used to measure pH, ORP, conductivity (using either contacting or toroidal sensors), resistivity, oxygen (ppm and ppb level), free chlorine, total chlorine, and ozone in a variety of process liquids.





Enclosure:

Cast aluminum containing less than 6% magnesium, with epoxy polyester coating. NEMA 4X (IP65) and NEMA 7B. Neoprene O-ring cover seals.
Dimensions:


See Drawing
Conduit Openings:
3/4-in NPT
Ambient Temperature:
-4 to 149°F (-20 to 65°C)
Storage Temperature: -22 to 176°F (-30 to 80°C)

Relative Humidity:
0 to 95% (non-condensing
Weight/Shipping Weight: 10 lb/11 lb (4.5/5.0 kg)
Display: Two-line LCD; first line shows process variable (pH, ORP, conductivity, % concentration, oxygen, ozone, or chlorine), second line shows process temperature and output current. For pH/chlorine combination, the second line can be toggled to show pH. Fault and warning messages, when triggered, alternate with temperature and output readings.
First line: 7 segment LCD, 0.8 in. (20 mm) high.
Second line: 7 segment LCD, 0.3 in. (7mm) high.
Display board can be rotated 90 degrees clockwise or counterclockwise.
During calibration and programming, messages and prompts appear in the second line.
Temperature resolution: 0.1°C
Hazardous Location Approval: For details, see specifications for the measurement of interest.
RFI/EMI: EN-61326
Digital Communications:
For details, see specifications for the measurement of interes











Common Models:



1056-01-25-38-AN 5081-P-HT
1056-01-20-38-AN 400-12-36-60
1056-01-22-38-AN 23550-00
1056-03-22-32-AN 24091-02
1057-02-20-32-42 400-11
1057-02-20-30-40 142-03-14-54
228-03-20-54-61 140-54
3900-1-10 23730-00
3900-2-10 23731-00
396P-02-10-55 9310120
396P-02-10-55-41 23724-00
389-01-10-54 400-13-54-50
389-01-10-55 400-12-54-50
389-02-10-54 400VP-11
499ADO-54-VP 24263-00
5081-C-HT-21-67 24091-00
Tags:

24263-00,

90 psig Rosemount Ph Transmitter,

Emerson Rosemount Ph Transmitter
