PRODUCTS DETAILS
Home > Products >

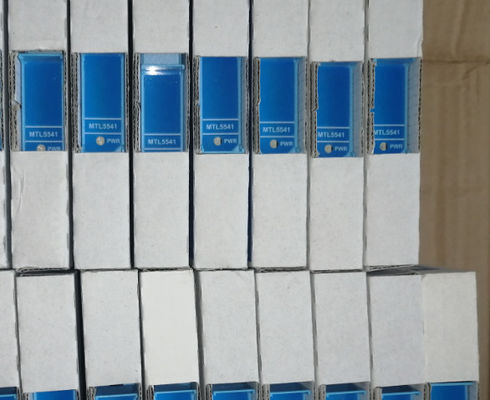

MTL5541 MTL Instruments

MTL5541 MTL Instruments

MOQ: 1
Price: Negotiable
Standard Packaging: carton
Delivery Period: on request
Payment Method: T/T
Supply Capacity: 100+pc+on stock
Detail Information
Place of Origin
UK
Brand Name
MTL
Certification
ROHS
Model Number
MTL5541
Material:
Plastic And Metal
Color:
White Box
Manufacturer:
MTL Instruments
Product No:
MTL5541
Product Type:
Repeater Power Supply
Number Of Channels:
One
LED Indicator:
Green: Power Indication
Shipping Weight:
1.0 Kg
Highlight:

MTL5541 MTL Instruments

,

20mA MTL Instruments

,

MTL instrument isolator

Product Description

MTL5541 MTL Instruments Repeater Power Supply



The MTL5541-T provides a fully-floating dc supply for energising a
conventional 2- or 3-wire 4/20mA transmitter, which is located in a
hazardous area, and repeats the current in another floating circuit to
drive a safe-area load. For HART 2-wire transmitters, the unit allows
bi-directional communications signals superimposed on the 4/20mA
loop current. Alternatively, the MTL5541S-T acts as a current sink
for a safe-area connection rather than driving a current into the load.
Separately powered current sources, such as 4-wire transmitters, can
be connected but will not support HART communication.



Estimated Lead Time : Usually ships in 1-10 working days.

Manufacturer : MTL Instruments

Product No. : MTL5541

Product type : Repeater Power Supply

Number of channels : One

Location of transmitter : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location

Safe-area circuit ripple : < 50µA peak-to-peak

Transfer accuracy at 20°C : Better than 15µA

Temperature drift : < 0.8µA/°C

Response time : Settles to within 10% of final value within 50µs

Communications supported : HART® (terminals 1 & 2 only)

LED indicator : Green: power indication

Maximum current consumption (with 20mA signal) : 51mA at 24V

Dimensions ( D x W x H ) : 1.58 cm x 10.98 cm x 12.36 cm

Weight : 0.11 Kg

Shipping Weight : 1 Kg





Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)
