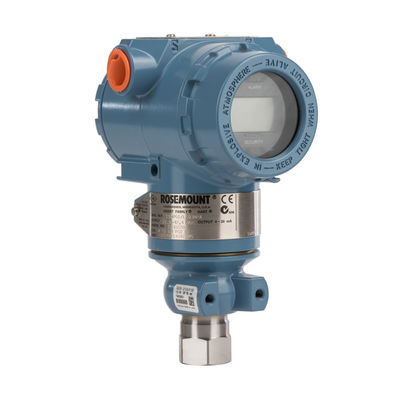

In Line Pressure Transmitter 33051TG3A2B21AB4M5

MOQ:	1
Price:	negotiable
Standard Packaging:	carton
Delivery Period:	on request
Payment Method:	T/T
Supply Capacity:	1~1000pcs

Details Information

Product Description

Detail Information

Place of Origin

Singapore

Brand Name

Emerson Rosemount

Certification

Model Number

3051TG3A2B21AB4M5

Transmitter Output:

4–20 MA With Digital Signal Based On HART Protocol

Pressure Range:

–14.7 To 800 Psi (–1,01 To 55,15 Bar)

Origin:

Singapore

Model:

3051TG3A2B21AB4M5

Product Type:

3051T In-line Pressure Transmitter

Sensor Fill Fluid:

Silicone

Manufacturer:

Rosemount

Pressure Type:

Highlight:

Emerson Rosemount pressure transmitter with warranty

In line pressure transmitter 33051TG3A2B21AB4M5

Industrial pressure transmitter for process control

Product Description

33051TG3A2B21AB4M5 In-Line Pressure Transmitters

Description:

Manufacturer:
Product No.: 3051TG3A2B21AB4M5
Product type: 3051T In-line Pressure Transmitter
Pressure type: G = Gage
Pressure range: 3 = –14.7 to 800 psi (–1,01 to 55,15 bar)
Transmitter output: A = 4–20 mA with digital signal based on HART Protocol
Isolating diaphragm,Process connection wetted parts material: 2 = 316L SST,316L SST
Sensor fill fluid: 1 = Silicone
Housing material,Conduit entry size: A = Aluminum, ½–14 NPT
Mounting bracket: B4 = Bracket for 2-in. pipe or panel mounting, all SST
Weight: 1.9 Kg
Shipping weight: 8 Kg

Additional Informaiton:

3051T In-Line Pressure Transmitters are the industry standard for gage and absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

Features & Benefits

HART compatible for easy configuration and calibrationComes standard with 316 stainless steel wetted materials for durability in most process applications
Local display option for easy field measurements

Specifications of 3051TG Pressure Transmitter

Output: 4-20 mA with digital signal based on HART Protocol;

Low Power, 1-5 V dc with digital signal based on HART Protocol;

Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range: 0-0.3 to 0-10,000 psi

Accuracy: 1-5: +/-0.075% of span

Power: 4-20 mA: 10.5-55 V dc with no load Low Power: 6-12 V dc with no load

Materials: Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel

Fluid: Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting: Coplanar and Traditional flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST

Important terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 3kg

4. Unit dimensions: (W x L x H): 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months

Common models:

3051CG1A02A1AB1H2L4M5,	3051CD0A02A1AB3H2L4M5E5,
3051CG2A02A1AB1H2L4M5,	3051CD1A02A1AB3H2L4M5E5,
3051CG3A02A1AB1H2L4M5,	3051CD2A02A1AB3H2L4M5E5,
3051CG4A02A1AB1H2L4M5,	3051CD3A02A1AB3H2L4M5E5,
3051CG5A02A1AB1H2L4M5,	3051CD4A02A1AB3H2L4M5E5,
051CG1A02A1AB3H2L4M5,	3051CD5A02A1AB3H2L4M5E5,
3051CG2A02A1AB3H2L4M5,	3051CD0A02A1AB3H2L4M5I5,
3051CG3A02A1AB3H2L4M5,	3051CD1A02A1AB3H2L4M5I5,
3051CG4A02A1AB3H2L4M5,	3051CD2A02A1AB3H2L4M5I5,
3051CG5A02A1AB3H2L4M5,	3051CD3A02A1AB3H2L4M5I5,
3051CG1A02A1AB1H2L4M5K5,	3051CD4A02A1AB3H2L4M5I5,
3051CG2A02A1AB1H2L4M5K5,	3051CD5A02A1AB3H2L4M5I5,
3051CG3A02A1AB1H2L4M5K5	3051CD1A22A1AB4M5,
3051CG4A02A1AB1H2L4M5K5,	3051CD2A22A1AB4M5,
3051CG5A02A1AB1H2L4M5K5	3051CD3A22A1AB4M5,
3051CG1A02A1AB1H2L4M5E5,	3051CD4A22A1AB4M5,
3051CG2A02A1AB1H2L4M5E5,	3051CD5A22A1AB4M5,
3051CG3A02A1AB1H2L4M5E5,	3051CD1A22A1AB4M5DF,
3051CG4A02A1AB1H2L4M5E5,	3051CD2A22A1AB4M5DF,
3051CG5A02A1AB1H2L4M5E5,	3051CD3A22A1AB4M5DF,
3051CG1A02A1AB1H2L4M5I5,	3051CD4A22A1AB4M5DF,
3051CG2A02A1AB1H2L4M5I5,	3051CD5A22A1AB4M5DF,
3051CG3A02A1AB1H2L4M5I5,	3051CD1A22A1AB4M5K5,
3051CG4A02A1AB1H2L4M5I5,	3051CD2A22A1AB4M5K5,
3051CG5A02A1AB1H2L4M5I5,	3051CD3A22A1AB4M5K5,
3051CG1A02A1AB3H2L4M5K5,	3051CD4A22A1AB4M5K5,
3051CG2A02A1AB3H2L4M5K5,	3051CD5A22A1AB4M5K5,
3051CG3A02A1AB3H2L4M5K5,	3051CD1A22A1AB4M5E5,
3051CG4A02A1AB3H2L4M5K5,	3051CD2A22A1AB4M5E5,
3051CG5A02A1AB3H2L4M5K5,	3051CD3A22A1AB4M5E5,
