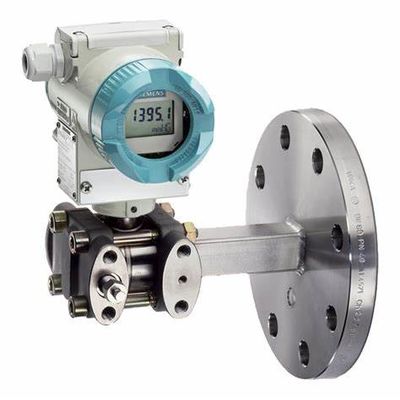

Absolute Pressure Siemens SITRANS Pressure Transmitter

Absolute Pressure Siemens SITRANS Pressure Transmitter
Absolute Pressure Siemens SITRANS Pressure Transmitter Absolute Pressure Siemens SITRANS Pressure Transmitter Absolute Pressure Siemens SITRANS Pressure Transmitter Absolute Pressure Siemens SITRANS Pressure Transmitter

Large Image :  Absolute Pressure Siemens SITRANS Pressure Transmitter

Product Details:
Place of Origin: China Or France
Brand Name: SIEMENS
Certification: ROHS
Model Number: 7MF0330-1LR01-5AM2-ZA00+B11+E00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 1~1000pcs
Detailed Product Description
Model: 7MF0330-1LR01-5AM2-ZA00+B11+E00 Packing: Standard Siemens Carton
Accuracy: 0.065% Span Approvals: FM, CSA, ATEX, SIL, NSF
Output: 4-20 MA Output With HART Communications Standard Response Time: Response Times 105 MS For Pressure, 135 MS For Differential Pressure
Packing: New And Original With Factory Sealed Origin: China
High Light:

Absolute Pressure Siemens SITRANS Pressure Transmitter


FM Siemens SITRANS Pressure Transmitter


CSA Siemens SITRANS Pressure Transmitter

Siemens SITRANS 7MF0330 Pressure transmitter Absolute pressure



Products Description:

SITRANS P320 Pressure transmitter Absolute pressure (with differential pressure measuring cell) HART (4...20 mA) Measuring cell filling: Silicone oil Maximum measuring span: 1300 mbar (522 inH²O) Oval flange, fastening thread: M10 (DIN 19213) Diaphragm: Stainless steel 316L/1.4404, measuring cell: Stainless steel 316L/1.4404; Sensor Differential pressure: process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device no Ex 2 x M20 x 1.5 With display (lid with glass window) Cable gland attached, plastic Labeling type plate German - bar General approval without Ex approval: World (CE, RCM, EAC, FM, CSA, KCC) Mounting bracket, electrogalvanised steel Measuring range setting: Lower range value (max. 5 characters). Upper range value (max. 5 characters). Unit (mbar. bar. kPa. MPa. psi. ...) Example: -0.5 ... 10.5 psi Display: (pressure. % of range). pressure reference (none. absolute. gauge). example: pressure gauge.


Products Feartures:
Adjustable span 0.12 (0.4"wc) to 10153 PSI (gauge pressure models), 0.4"wc to 435 PSID (differential pressure models)
4-20 mA output with HART communications standard
Rangeability and turndown of up to 100:1
Response times 105 mS for pressure, 135 mS for differential pressure
Accuracy to 0.065% span; Long-term stability to 0.125% span per year for 5 years
Four pushbuttons under nameplate cover for configuration changes to the device; Integrated Quick Start wizard and parameter assignment using HART protocol and SIMATIC PDM
Display includes process variable in your choice of engineering units, including % or mA, and a 12-character free text message; Symbols on display show NAMUR device failure or out-of-specification, maintenance alerts, function test, output signal failure, and event counters
Display can rotate 360° for optimal viewing
Diagnostic functions in accordance with NAMUR NE107
NEMA 4X/IP66/IP68 diecast aluminum or precision-cast stainless steel electronics enclosure with removable circular cover at front and back and access to pushbuttons under nameplate cover
Screw cover with window available for viewing the display without opening the cover
Full compliance to SIL2 and SIL3 requirements per IEC 61508
Threaded, flanged, or flush-mount diaphragm process connections
FM, CSA, ATEX, SIL, NSF approvals available



Important terms:


1. Quote Validity 30 days

2. Offered product genuine and brand new.

3. Manufacturer name & country of origin: Dalian,China or France

4. Delivery lead time: 8-10 weeks

5. Shipping cost to us: We provide when goods ready for shipment

6. Shipping mode (Air/Sea): Air
