E&H Digital PH Sensor

E&H Digital PH Sensor
E&H Digital PH Sensor E&H Digital PH Sensor E&H Digital PH Sensor

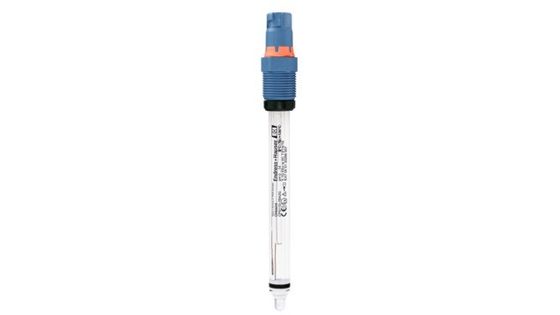

Large Image :  E&H Digital PH Sensor

Product Details:
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: RoHs
Model Number: CPS11D-7BA21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: CARTON
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 500+pcs+on stock
Detailed Product Description
Measurement Range: PH 0 To 14 Process Temperature: 0 To 135 °C (32 To 275 °F)
Process Pressure: 1 To 17 Bar (15 To 246 Psi) Model: CPS11D-7BA21
Origin: Germany Product Type: Digital PH Sensor
Approval: Non-hazardous Area Shaft Length: 120 Mm / 4.72"
High Light:

CPS11D Digital PH Sensor


E&H Digital PH Sensor


17 bar endress hauser cps11d

CPS11D-7BA21 Digital pH sensor Orbisint Memosens glass electrode






Manufacturer : Endress+Hauser

Product No. : CPS11D-7BA21

Product type : Digital pH sensor Orbisint CPS11D

Version : 7 = max. 135 °C / 275 °F, built-in temperature sensor

Application range : BA = pH = 0 ... 14, T = 0 ... 135 °C / 32 ... 275 °F, sterilisable, 16 bar / 232 psi

Shaft length : 2 = 120 mm / 4.72"

Approval : 1 = Non-hazardous area

Shipping weight : 1.5 Kg



Additional Informaiton:


Memosens glass electrode for standard applications
Orbisint CPS11D is the digital all-rounder for process and environmental technology. It measures reliably even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money. Thanks to Memosens digital technology, CPS11D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.





Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

Optional salt ring for low conductivity applications such as boiler feed water and water for injection

Maximum process safety through non-contact, inductive signal transmission

Enables predictive maintenance due to storage of sensor and process-specific data

Reduced operating costs thanks to minimized process downtime and extended sensor lifetime

Show less



Field of application

Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Paper industry
- Power plants (e.g. flue gas washers, boiler feed water)
- Incineration plants

Water treatment:
- Drinking water
- Cooling water
- Well water

With ATEX, FM, CSA approval for use in hazardous areas.

Show less


Features and specifications

Measuring principle


Long-term monitoring, processes with little change
Water and wastewater treatment

Analog, digital pH electrodes for standard applications in process and environmental technology
Dirt-repellent PTFE diaphragm, built-in temperature sensor

Measurement range
pH 0 to 14

Measuring principle
Gel compact electrode with PTFE ring-diaphragm

All shaft lengths with temperature sensor
Advanced gel technology
Digital electrode with Memosens technology

Glass and PTFE


Diameter: 12 mm (0.47 inch)
Shaft length: 120, 225 and 360 mm
(4.72, 8.86 and 14.17 inch)

Process temperature
0 to 135 °C (32 to 275 °F)

Process pressure
1 to 17 bar (15 to 246 psi)

Temperature sensor
NTC 30k

Ex certification

Inductive, digital connection head with Memosens technology

Ingres protection


Additional certifications
Also available as SIL version
