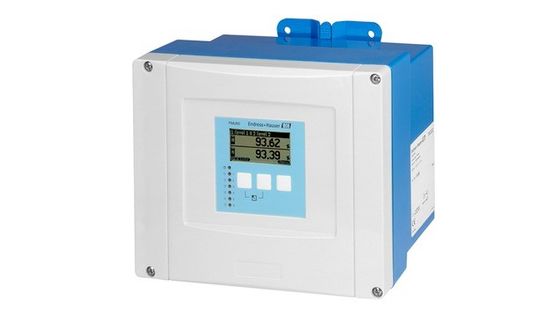

FMU90-R11CA212AA3A Ultrasonic measurement Time-of-Flight Prosonic FMU90 Transmitter
Description:
Manufacturer :Endress+Hauser
Product No. : FMU90-R11CA212AA3A
Product type : Ultrasonic measurement Time-of-Flight Prosonic FMU92
Transmitter in housing for field or top hat rail mounting for up to 2 sensors FDU90/91/92/93/95
R-Approval:Non-hazardous area
1-Application:Level + pump control, alternating
1-Housing, Material:Field mounting PC, IP66 NEMA4x
C-Operation:Illuminated display + keypad
A-Power Supply:90-253VAC
2-Level Input:2x sensor FDU9x/8x
1-Switch Output:1x relay, SPDT
2-Output:2x 0/4-20mA HART
A-Additional Input:W/o
A-Datalog Function:Basic version
3-Language:EN, ZH, JA, KO, TH, ID
A-Additional Option:Basic version
Weight
Field housing : approx. 1.6 to 1.8 kg (3.53 to 3.97 lbs); depending on instrument version
Housing for DIN rail : approx. 0.5 to 0.7 kg (1.10 to 1.54 lbs); depending on instrument version
separate display and operating module : approx. 0.5 kg (1.10 lbs)
Shipping Weight : 4 Kg
Additional Informaiton:
Prosonic FMU90 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids. Also the flow measurement in open channels and weirs is possible as the simultaneous measurement of level and flow in a storm water overflow basin with only 1 sensor. Up to 6 relays for tendency alarm, flow pulse output or backwater/sludge alarm, 1 or 2 channel version.
