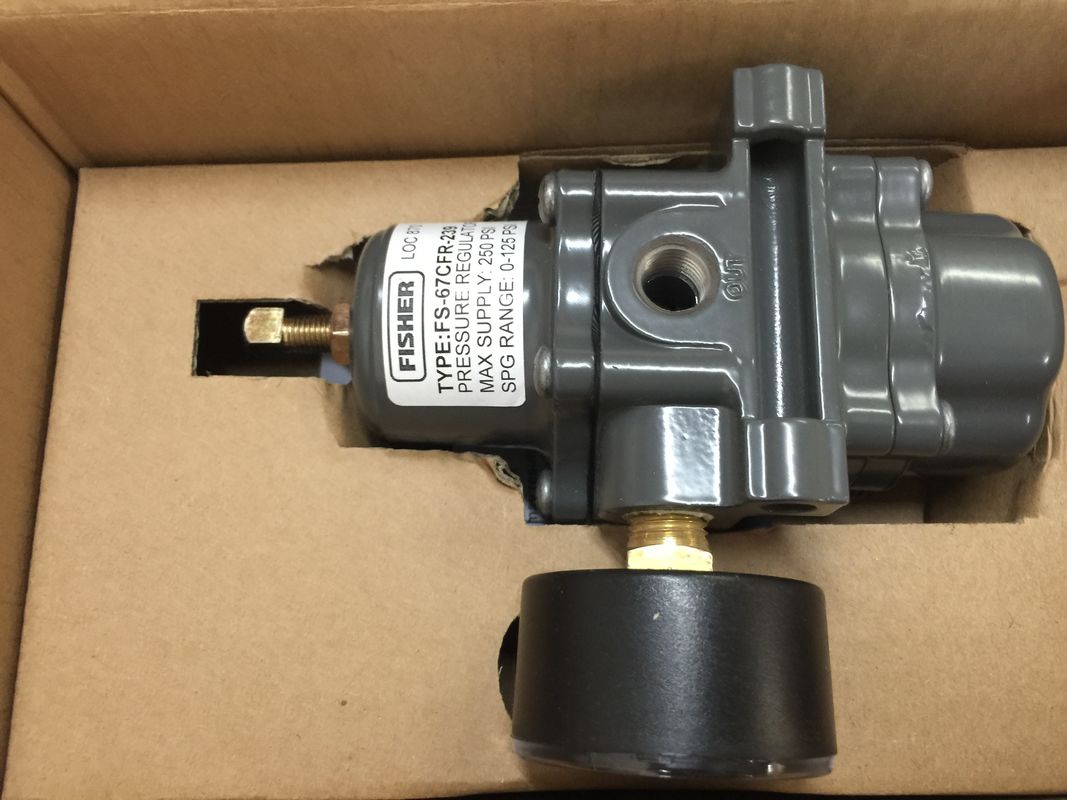

Instrument Supply EMERSON Fisher Regulator 67CFR 239

EMERSON Fisher Type 67CFR-239 Instrument Supply Regulator 67CFR-239

Description:

Estimated Lead Time : Usually ships in 1 - 10 working days.

Manufacturer : Fisher

Model No. : 67CFR-239

Product type : 67C Series Instrument Supply Regulators

Body and Spring Case : Aluminum (ASTM B85/Alloy 380)

Pusher Post and Valve Cartridge : Polyester resin

Upper Spring Seat : Zinc-plated steel

Lower Spring Seat, Diaphragm Plate : Chromate conversion coated Aluminum

Control Spring : Plated Steel or Inconel® (NACE)

Diaphragm and O-Rings : Nitrile (NBR), Fluorocarbon (FKM) or Silicone (VMQ)(

Soft Seat and Gaskets : Nitrile (NBR) or Fluorocarbon (FKM)

Bolting, Adjusting Screw, Locknut : Zinc-plated steel or Stainless steel

Shipping Weight : 3 Kg

Fisher Type 67CFR-239 Instrument Supply Regulator are typically used to provide constantly controlled, reduced pressures to pneumatic and electropneumatic controllers and other instruments. The 67C Series are suitable for most air or gas applications. Other applications include providing reduced pressure for air chucks, air jets, and spray guns.


Specifications:

Body Material: Aluminum
Body Size and End Connection: 1/4 NPT
Maximum Inlet Pressure: 250 psig / 17.2 bar
Maximum Emergency Outlet Pressure: 50 psi / 3.4 bar over outlet setting
Temperature Capabilities: NBR: -40 to 180°F / -40 to 82°C || FKM: 0 to 300°F / -18 to 149°C || Silicone (VQM) Diaphragm and Low Temp Bolting: -60 to 180°F / -51 to 82°C
