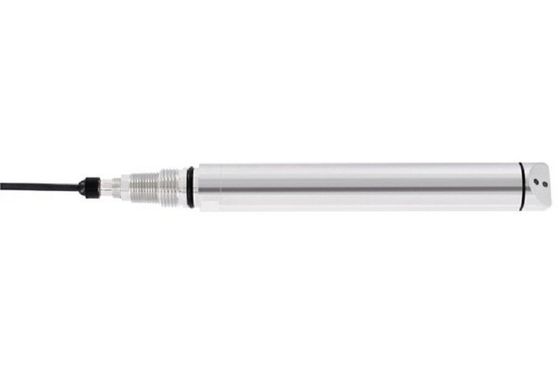

Cus52d E&H Instrument , EPDM Endress Hauser Turbimax CUS52D

Additional Informaiton:

Hygienic Memosens sensor for turbidity measurement in drinking water, process water and utilities

Turbimax CUS52D is a smart sensor with lab accuracy that allows unattended operation of all turbidity measuring points in drinking water production and many other applications with fresh, process or salt water. You can mount it directly into your pipeline, thus saving costly bypass installations and avoiding product losses. Thanks to Memosens digital technology, the Turbimax CUS52D offers maximum process and data integrity, simple operation and allows predictive maintenance.

Specs at a glance

Measurement range
0.000 to 4000 FNU

Process temperature
Stainless steel version: -20 to 85 °C (0 to 185 °F)
Plastic version: -20 to 60°C (-4 to 140 °F)

Process pressure
Stainles steel version: 0.5 to 10 bar abs
(7.3 to 145 psi abs)
Plastic version: 0.5 to 6 bar abs
(7.3 to 87 psi abs)

Benefits

Measuring results like in the lab: Highly accurate and reliable monitoring of your water quality – even at the lowest turbidity.

Turbidity measurement without product loss: Hygienic inline measurement preserves each drop of water in the process.

Unattended operation: Intelligent design and practical accessories enable sophisticated self-cleaning capabilities and minimize maintenance.

Smart verification and calibration: Absolutely safe, liquid-free, without Formazin.

Great flexibility, simple handling: One sensor for all measuring points and all installation environments (inline or immersion).

Improved process control: Individually adaptable sensor response time.

Fast commissioning: Factory calibration and Memosens technology allow plug & play integration into your process.

Field of application
Turbimax CUS52D measures turbidity in:

Drinking and process water:
From inlet to outlet in water plants
Raw water abstraction and control
Distribution networks
All quality control points in water production

Saline water:
Desalination plants
Marine applications (e.g. monitoring of exhaust gas cleaning on ships)

Wastewater treatment plants:
Reuse of outlet water (e.g. 4th cleaning step)

Utilities in all industries:
From inlet to outlet in water production
Distribution networks
