| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | standard carton packing |
| Delivery Period: | on request |
| Payment Method: | T/T |
| Supply Capacity: | 1~1000pcs |

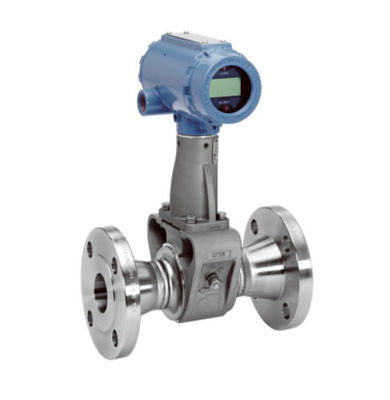

Emerson Rosemount 8800 MultiVariable Vortex Flow Meter 8800DW015
Description:
Manufacturer : Rosemount
Product No. : 8800DW015SA1N1D1K5M5T1
Product type : 8800D Vortex Flowmeter
Meter style : W = Wafer style
Line size : 015= 1 1/2-in. (40 mm)
Wetted materials : S = 316 wrought stainless and CF-3M cast stainless. Note: Material of construction is 316/316L
Flange or alignment ring size : A1 = ASME B16.5 (ANSI) RF Class 150
Sensor process temperature range : N = Standard: -40 to 450°F (-40 to 232°C)
Conduit entry : 1 = 1/2 -14 NPT – Aluminum Housing
Outputs : D = 4-20 mA digital electronics (HART protocol)
Calibration : 1 = Flow calibration
Hazardous locations certifications : K5 = US Approvals Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Non-Incendive
Display type : M5 = LCD indicator
Transient protection : T1 = Transient Protection terminal block
Weight : 3.5 Kg
Shipping weight : 5 Kg
Common models:
| 8800DF020SK1N2D1E5M5 |
| 8800DR020SK1N2D1E5M5 |
| 8800DF020SA1N2D1M5 |
| 8800DF060SA1N1D1M5 |
| 8800DF040SA1N2D1M5Q4 |
| 8800DF020SA7E1D1M5Q4 |
| 8800DW015SK3N2D1I1M5Q4 |
| 8800DF060SA1N2D1I1Q4M5 |
| 8800DW010SK1N1D1I1M5Q4 |
| 8800DF020SA3N2P1E1Q4Q8PD |
| 8800DF005SA1N2D1I1R10Q4 |
| 8800DF010SA1N2D1I1R10Q4 |
| 8800DW030SA3N1D1E5M5R20Q4 |
| 8800DF060SA1N2D1M5Q4Q8 |
| 8800DW010SA3N2D1M5Q4Q8 |
| 8800DW020SK3N2D1I1M5P2Q4 |
| 8800DW010SK3N2D1I1M5P2Q4 |
| 8800DF020SA3N1P1MTAM5R50Q4 |
| 8800DF020SA7E1D1E5M5Q4 |
| 8800DF060SA3N7D1I1M5Q4Q8T1 |
| 8800DF030SA1N1D1MCAM5HR7Q4 |
| 8800DF080SA3E1D1MCAM5HR7Q4 |
| 8800DD060SA8N2F1E1M5A01Q4Q8 |
| 8800CW030SA3N1D1E5M5R20Q4 |
| 8800DW010SA1N2Q1K7M5Q4Q8 |
| 8800DF005SA1N3F1I1M5A01Q4 |
| 8800DF010SA1N3F1I1M5A01Q4 |
| 8800DF015SA1N3F1I1M5A01Q4 |
| 8800DF020SA1N3F1I1M5A01Q4 |
| 8800DF030SA1N3F1I1M5A01Q4 |
| 8800DF040SA1N3F1I1M5A01Q4 |
| 8800DF080SA1N3F1I1M5A01Q4 |
| 8800DD060CA8N2F1E1M5A01J7Q4Q8 |
| 8800DF060SA3N7D1I1M5Q4Q8Q5T1 |
Important terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs: 8kg
4. Unit dimensions: (W x L x H) : 30*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
