389 389VP Rosemount PH Probes General Purpose PH ORP Sensors 389-01-10-54

389 389VP Rosemount PH Probes General Purpose PH ORP Sensors 389-01-10-54

MOQ: 1
Price: negotiable
Standard Packaging: standard carton packing
Delivery Period: on request
Payment Method: T/T
Supply Capacity: 1~1000pcs
Detail Information
Place of Origin
Mexico
Brand Name
rosemount
Certification
ROHS
Model Number
389-01-10-54
Origin:
Mexico
Shipping Weight:
2 Kg
Model:
389-01-10-54
Temperature Range:
0 To 85 °C (32 To 185 °F)
Maximum Pressure:
100 Psig (790 KPa [abs]) At 65 °C (150 °F)
Preamplifier/Cable:
Integral Preamplifier, 25 Ft Cable (1)
Combination Electrode:
PH - GPLR Glass
Transmitter/TC Compatibility:
1054A/B, 81, 2081 (code -01 Or -02); For 54, 56, 1055, 1056, 1057, 1066, 5081, 6081, XMT (code -02 Only)
Highlight:

389VP Rosemount PH Probes

,

389 Rosemount PH Probes

,

389-01-10-54

Product Description

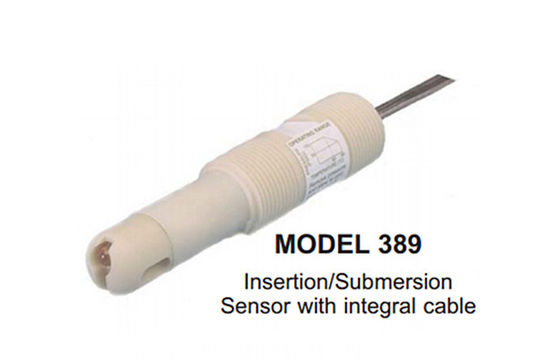

389-01-10-54 Rosemount 389/389VP General Purpose pH/ORP Sensors



The Rosemount 389 and 389VP General Purpose pH/ORP Sensors are housed in a
molded Tefzel body with 1 in. MNPT forward and rear facing threads suitable for
insertion, submersion, or flow through installation. The sensors can be configured with
a general purpose pH, high pH, or platinum ORP electrode. Rosemount 389/389VP
sensors are offered with SMART preamplifiers for pH measurements and standard
integral preamplifiers for ORP measurements. These sensors may be configured
without a preamplifier but must be used with a remote preamplifier (j-box or
transmitter). Automatic temperature compensation is standard. Sensors are available
with either an integral cable connection (389) or Variopol (VP6) connector (389VP).
Variopol cables sold separately (see Accessories ).



Common Models:



4847B61G03 222-01-21
3051 1056-01-21-31-AN
1151 396P-02-10-55
3095MFA 400-11
3051SFA 475FP1EKLUGMAT
8700 3900-2-10
8800 499ATRDO-54
3051L2AG0RD21AAK5M5Q4 1056-01-22-38-AN
3051L2AH0KD21AAM5 1056-01-20-38-AN
3051L4AA6GD21ABI5M5Q4 3200HP-00
3051L3AA0AA21ABM5 1056-03-20-38-AN
3051L 23502-04
1056-03-25-35-AN 396P-01-10-55
3051GP2A2B21AB4M5HR5 9210264
3051S2TG3A2E11A1AB4I5M5Q4 3 228-02-21-56-61
900VP-01-10 23166-00
0226-02-56-80 0396R-10-21-54
400-11-50 0400-11-50
24091-00 1895-233
499ATRD0-54-70, 389-01-10-55
400-12-50 3051TG2A2B21BB4I5M5
1056-03-20-32-AN 499ADO-54-VP
1056-03-20-30-AN 396PUP-10-55
499ADO-54-99CB45 L=45ft 400-11,K=0.01
3400HT-10-21-30-62 400VP-11,K=0,01
23501-04 499ATRDO-54-70 399VP-10-301
1066-T-HT-69 0228-02-21-56-61
23501-11 0396-01-10-55
3900VP-02-12 5081-C-HT-21-67
228-04-21-56-61 400-13
396P-01-13-55 369PVP-10-55
5081-PF-F-20-67 400VP-11
396-54 8-0108-0003-ISO 23642-00
2088G2S22A1M5B4 369P-01-10-55
398R-10-21-30-54-62 3900-1-10
1056-01-22-38-HT 3900-1-12
24281-00 23646-01 400-12-54
1056-03-22-38-AN 400-13
1056-01-21-38-AN 400-11-50
751AM7I8BC 5081-P-HT-20-67
11275-01 396R-10-21-54-61
23501-00 396R-12-21-54-61
915240-04 23709-00
1066-C-HT-60 23646-01
1066-P-HT-60 9210013
396R-10-21-54 5081-C-HT-20-67
3051L3AC0TC22ABE5M5Q4 23765-00
396P-02-10-55-41 402VP-11-31
389-02-10-54-62 23747-00
1056-02-22-38-AN 9210004
24281-01 3200hp-03 9160410
396R-10-21-54-61 3300-HT-10-30
3900VP-02-10 400-13
1056-03-22-38-HT 396R-10-21-54
400-12 1056-03-22-32-AN
1056-01-20-32-AN 1056-03-21-31-AN
1056-02-10-20-30 369P-02-10-55
385+-02-11 1056-01-20-30-AN
1056-01-25-38-AN 23823-00
396PVP-10-55 23240-00
3300HT-10-30 24281-05
1056-03-21-38-HT 23820-00
0389-02-10-54 0 23502-00
499ADO-54 396P-02-10-55
1056-01-25-32-AN 56-03-21-38-HT
1056-01-22-32-AN 0389-02-10-54
396P-01-10-50 0396P-02-10-55





Why choose GSI?
1. 100% original product, 100% quality assurance.
2. Varied payment methods.
We adopt T/T, western union and paypal and Currency in EURO,USD,RMB
3.SHIPPING:
We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
