| MOQ: | 1 |
| Price: | negotiable |
| Standard Packaging: | carton |
| Delivery Period: | on request |
| Payment Method: | T/T |
| Supply Capacity: | 1~1000pcs |

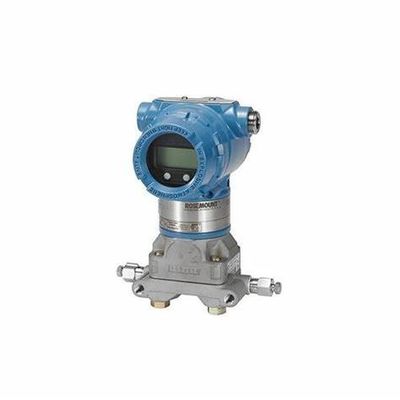

3051CD4A22A1AB4 Rosemount 3051C Coplanar Pressure Transmitter
Description:
Estimated Lead Time : 4 - 6 weeks.
Manufacturer : Rosemount
Product No. : 3051CD4A22A1AB4
Product type : 3051C Coplanar Pressure Transmitter
Measurement type : D = Differential
Pressure range : 4 = –300 to 300 psi (–20,68 to 20,68 bar)
Transmitter output : A = 4–20 mA with digital signal based on HART® Protocol
Materials of construction : 2 = Coplanar Process flange type, SST Flange material, SST Drain/vent.
Isolating diaphragm : 2 = 316L SST
O-ring : A = Glass-filled PTFE
Sensor fill fluid : 1 = Silicone
Housing material : A = Aluminium, ½–14 NPT
Display and interface options : M5 = Display and interface options
Mounting Bracket : B4 = Coplanar flange bracket, all SST, 2-in. pipe and panel
Weight : 3 Kg
Shipping Weight : 5 Kg
Additional Informaiton:
Proven best-in-class performance, reliability
and safety
Over 7 million installed
Reference accuracy 0.04% of span
Installed total performance of 0.14% of span
5-year stability of 0.125% of URL
SIL2/3 certified (IEC 61508)
Maximize installation and application flexibility
with the Coplanar™ Platform
Improve reliability and performance with integrated DP
Flowmeters, DP Level solutions and integral manifolds
Easy installation with all solutions fully assembled,
leak-tested and calibrated
Meet your application needs with an unsurpassed offering
Important terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 3kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
