Product Details:
Payment & Shipping Terms:
|
| Origin: | Singapore | Model: | 3051TG2A2B21BB4E8D4M5Q4 |
|---|---|---|---|
| Total Performance: | ±0.15% | Calibrated Spans: | 0.3 To 10000 Psi |
| Installed Five-year Stability: | 0.125% | Range: | 0-0.3 To 0-10,000 Psi |
| 1-5: +/-0.075% Of Span: | 1-5: +/-0.075% Of Span | Power: | 4-20 MA: 10.5-55 V Dc With No Load Low Power: 6-12 V Dc With No Load |
| Materials: | Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum, Gold Plated SS, Gold Plated Monel | Mounting: | Coplanar And Traditional Flanges And Adapters: Cadmium And Nickel-plated CS, 316 SST |
| High Light: | 3051TG Emerson Rosemount Pressure Transmitter,4ma Emerson Rosemount Pressure Transmitter,EMERSON 3051TG |
||

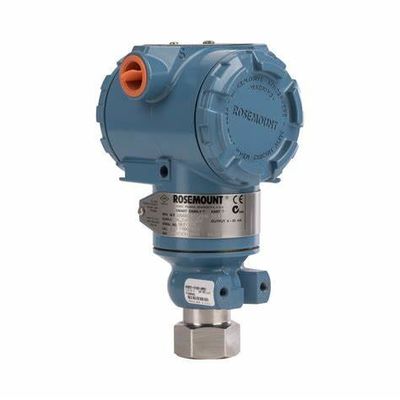

Emerson Rosemount 3051TG In-Line Pressure Transmitters 3051TG2A2B21BB4E8D4M5Q4
Description:
Manufacturer : Rosemount
Product No. : 3051TG2A2B21BB4E8D4M5Q4
Product type : In-line Pressure Transmitter
Pressure type : G = Gage
Pressure range : 2 = –14.7 to 800 psi (–1,01 to 55,15 bar)
Transmitter output : A = 4–20 mA with digital signal based on HART Protocol
Process connection style : 2B = 1/2–14 NPT female (range 1–5 only)
Isolating diaphragm,Process connection wetted parts material : 2 = 316L SST,316L SST
Sensor fill fluid : 1 = Silicone
Housing material,Conduit entry size : A = Aluminum,1/2–14 NPT
Mounting bracket : B4 = Bracket for 2-in. pipe or panel mounting, all SST
Product certifications : E5 = FM Explosion-proof, Dust Ignition-proof
Calibration certification : Q4 = Calibration certificate
Display and interface options : M5 = LCD display
Shipping weight : 7Kg
Features & Benefits
· Manufactured by Rosemount
· Calibrated spans from 0.3 to 10000 psi
· Up 0.04% accuracy (optional)
· Total performance of ±0.15%
· Installed five-year stability of 0.125%
· Unmatched Dynamic Performance
· Optional PlantWeb Functionality to increase plant productivity
· Responds up to eight times faster than the typical pressure transmitter
Common Models:
| 3051CG1A02A1AB1H2L4M5, | 3051CD0A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB1H2L4M5, | 3051CD1A02A1AB3H2L4M5E5, |
| 3051CG3A02A1AB1H2L4M5, | 3051CD2A02A1AB3H2L4M5E5, |
| 3051CG4A02A1AB1H2L4M5, | 3051CD3A02A1AB3H2L4M5E5, |
| 3051CG5A02A1AB1H2L4M5, | 3051CD4A02A1AB3H2L4M5E5, |
| 051CG1A02A1AB3H2L4M5, | 3051CD5A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB3H2L4M5, | 3051CD0A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB3H2L4M5, | 3051CD1A02A1AB3H2L4M5I5, |
| 3051CG4A02A1AB3H2L4M5, | 3051CD2A02A1AB3H2L4M5I5, |
| 3051CG5A02A1AB3H2L4M5, | 3051CD3A02A1AB3H2L4M5I5, |
| 3051CG1A02A1AB1H2L4M5K5, | 3051CD4A02A1AB3H2L4M5I5, |
| 3051CG2A02A1AB1H2L4M5K5, | 3051CD5A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB1H2L4M5K5 | 3051CD1A22A1AB4M5, |
| 3051CG4A02A1AB1H2L4M5K5, | 3051CD2A22A1AB4M5, |
| 3051CG5A02A1AB1H2L4M5K5 | 3051CD3A22A1AB4M5, |
| 3051CG1A02A1AB1H2L4M5E5, | 3051CD4A22A1AB4M5, |
| 3051CG2A02A1AB1H2L4M5E5, | 3051CD5A22A1AB4M5, |
| 3051CG3A02A1AB1H2L4M5E5, | 3051CD1A22A1AB4M5DF, |
| 3051CG4A02A1AB1H2L4M5E5, | 3051CD2A22A1AB4M5DF, |
| 3051CG5A02A1AB1H2L4M5E5, | 3051CD3A22A1AB4M5DF, |
| 3051CG1A02A1AB1H2L4M5I5, | 3051CD4A22A1AB4M5DF, |
| 3051CG2A02A1AB1H2L4M5I5, | 3051CD5A22A1AB4M5DF, |
| 3051CG3A02A1AB1H2L4M5I5, | 3051CD1A22A1AB4M5K5, |
| 3051CG4A02A1AB1H2L4M5I5, | 3051CD2A22A1AB4M5K5, |
| 3051CG5A02A1AB1H2L4M5I5, | 3051CD3A22A1AB4M5K5, |
| 3051CG1A02A1AB3H2L4M5K5, | 3051CD4A22A1AB4M5K5, |
| 3051CG2A02A1AB3H2L4M5K5, | 3051CD5A22A1AB4M5K5, |
| 3051CG3A02A1AB3H2L4M5K5, | 3051CD1A22A1AB4M5E5, |
| 3051CG4A02A1AB3H2L4M5K5, | 3051CD2A22A1AB4M5E5, |
| 3051CG5A02A1AB3H2L4M5K5, | 3051CD3A22A1AB4M5E5, |
| 3051CG1A02A1AB3H2L4M5E5, | 3051CD4A22A1AB4M5E5, |
| 3051CG2A02A1AB3H2L4M5E5, | 3051CD5A22A1AB4M5E5, |
| 3051CG3A02A1AB3H2L4M5E5, | 3051CD1A22A1AB4M5I5, |
| 3051CG4A02A1AB3H2L4M5E5, | 3051CD2A22A1AB4M5I5, |
| 3051CG5A02A1AB3H2L4M5E5, | 3051CD3A22A1AB4M5I5, |
| 3051CG1A02A1AB3H2L4M5I5, | 3051CD4A22A1AB4M5I5, |
| 3051CG2A02A1AB3H2L4M5I5, | 3051CD5A22A1AB4M5I5, |
| 3051CG3A02A1AB3H2L4M5I5, | 3051CA1A02A1AB1H2L4M5, |
| 3051CG4A02A1AB3H2L4M5I5, | 3051CA2A02A1AB1H2L4M5, |
| 3051CG5A02A1AB3H2L4M5I5, | 3051CA3A02A1AB1H2L4M5, |
| 3051CG1A22A1AB4M5, | 3051CA4A02A1AB1H2L4M5, |
| 3051CG2A22A1AB4M5, | 3051CA5A02A1AB1H2L4M5, |
| 3051CG3A22A1AB4M5, | 3051CA1A02A1AB3H2L4M5, |
| 3051CG4A22A1AB4M5, | 3051CA2A02A1AB3H2L4M5, |
| 3051CG5A22A1AB4M5, | 3051CA3A02A1AB3H2L4M5, |
| 3051CG1A22A1AB4M5DF, | 3051CA4A02A1AB3H2L4M5, |
| 3051CG2A22A1AB4M5DF, | 3051CA5A02A1AB3H2L4M5, |
| 3051CG3A22A1AB4M5DF, | 3051CA1A02A1AB1H2L4M5K5, |
| 3051CG4A22A1AB4M5DF, | 3051CA2A02A1AB1H2L4M5K5, |
| 3051CG5A22A1AB4M5DF | 3051CA3A02A1AB1H2L4M5K5, |
| 3051CG1A22A1AB4M5K5, | 3051CA4A02A1AB1H2L4M5K5, |
| 3051CG2A22A1AB4M5K5, | 3051CA5A02A1AB1H2L4M5K5, |
| 3051CG3A22A1AB4M5K5 | 3051CA1A02A1AB1H2L4M5E5, |
| 3051CG4A22A1AB4M5K5, | 3051CA2A02A1AB1H2L4M5E5, |
| 3051CG5A22A1AB4M5K5, | 3051CA3A02A1AB1H2L4M5E5, |
| 3051CG1A22A1AB4M5E5 | 3051CA4A02A1AB1H2L4M5E5, |
| 3051CG2A22A1AB4M5E5, | 3051CA5A02A1AB1H2L4M5E5, |
| 3051CG3A22A1AB4M5E5, | 3051CA1A02A1AB1H2L4M5I5, |
| 3051CG4A22A1AB4M5E5 | 3051CA2A02A1AB1H2L4M5I5, |
| 3051CG5A22A1AB4M5E5, | 3051CA3A02A1AB1H2L4M5I5, |
| 3051CG1A22A1AB4M5I5, | 3051CA4A02A1AB1H2L4M5I5, |
| 3051CG2A22A1AB4M5I5 | 3051CA5A02A1AB1H2L4M5I5, |
| 3051CG3A22A1AB4M5I5, | 3051CA1A02A1AB3H2L4M5K5, |
| 3051CG4A22A1AB4M5I5, | 3051CA2A02A1AB3H2L4M5K5, |
| 3051CG5A22A1AB4M5I5 | 3051CA3A02A1AB3H2L4M5K5, |
| 3051CD0A02A1AB1H2L4M5, | 3051CA4A02A1AB3H2L4M5K5, |
| 3051CD1A02A1AB1H2L4M5, | 3051CA5A02A1AB3H2L4M5K5, |
| 3051CD2A02A1AB1H2L4M5 | 3051CA1A02A1AB3H2L4M5E5, |
| 3051CD3A02A1AB1H2L4M5, | 3051CA2A02A1AB3H2L4M5E5, |
| 3051CD4A02A1AB1H2L4M5, | 3051CA3A02A1AB3H2L4M5E5, |
| 3051CD5A02A1AB1H2L4M5 | 3051CA4A02A1AB3H2L4M5E5, |
| 3051CD0A02A1AB3H2L4M5, | 3051CA5A02A1AB3H2L4M5E5, |
| 3051CD1A02A1AB3H2L4M5, | 3051CA1A02A1AB3H2L4M5I5, |
| 3051CD2A02A1AB3H2L4M5 | 3051CA2A02A1AB3H2L4M5I5, |
| 3051CD3A02A1AB3H2L4M5, | 3051CA3A02A1AB3H2L4M5I5, |
| 3051CD4A02A1AB3H2L4M5, | 3051CA4A02A1AB3H2L4M5I5, |
| 3051CD5A02A1AB3H2L4M5 | 3051CA5A02A1AB3H2L4M5I5, |
| 3051CD0A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5, |
| 3051CD1A02A1AB1H2L4M5K5, | 3051CA2A22A1AB4M5, |
| 3051CD2A02A1AB1H2L4M5K5, | 3051CA3A22A1AB4M5, |
| 3051CD3A02A1AB1H2L4M5K5, | 3051CA4A22A1AB4M5, |
| 3051CD4A02A1AB1H2L4M5K5, | 3051CA5A22A1AB4M5, |
| 3051CD5A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5DF, |
| 3051CD0A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5DF, |
| 3051CD1A02A1AB1H2L4M5E5, | 3051CA3A22A1AB4M5DF, |
| 3051CD2A02A1AB1H2L4M5E5, | 3051CA4A22A1AB4M5DF, |
| 3051CD3A02A1AB1H2L4M5E5, | 3051CA5A22A1AB4M5DF, |
| 3051CD4A02A1AB1H2L4M5E5, | 3051CA1A22A1AB4M5K5, |
| 3051CD5A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5K5, |
| 3051CD0A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5K5, |
| 3051CD1A02A1AB1H2L4M5I5, | 3051CA4A22A1AB4M5K5, |
| 3051CD2A02A1AB1H2L4M5I5, | 3051CA5A22A1AB4M5K5, |
| 3051CD3A02A1AB1H2L4M5I5, | 3051CA1A22A1AB4M5E5, |
| 3051CD4A02A1AB1H2L4M5I5, | 3051CA2A22A1AB4M5E5, |
| 3051CD5A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5E5, |
| 3051CD0A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5E5, |
| 3051CD1A02A1AB3H2L4M5K5, | 3051CA5A22A1AB4M5E5, |
| 3051CD2A02A1AB3H2L4M5K5, | 3051CA1A22A1AB4M5I5, |
| 3051CD3A02A1AB3H2L4M5K5, | 3051CA2A22A1AB4M5I5, |
| 3051CD4A02A1AB3H2L4M5K5, | 3051CA3A22A1AB4M5I5, |
| 3051CD5A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5I5, |
