Manufacturer: | Pepperl+Fuchs | Product Type: | Current/Voltage Driver |
---|---|---|---|
Product No: | KFD2-CD-1.32 | Rated Current: | ≤ 50 MA |
Mass: | Approx. 100 G | Connection: | Screw Terminals |
Leading Time: | Negotiable | Shipping Weight: | 1 Kg |
High Light: | PEPPERL FUCHS 1 Channel Current Driver,KFD2-CD-1.32,1 Channel PEPPERL FUCHS Voltage Driver |
Manufacturer : Pepperl+Fuchs
Product No. : KFD2-CD-Ex1.32

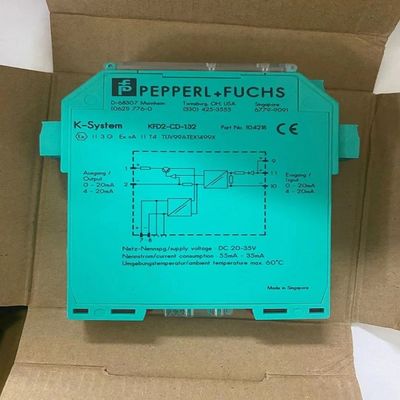

Product type : 1-Channel Current/Voltage Driver
Power supply : Power Rail or terminals 7+, 8-
Nominal voltage : 20-35 VDC
Rated current : = 50 mA (current output version) = 20 mA (voltage output version)
Input (not intrinsically safe) : Terminals 9+, 10-, 11+
Transmission range : 0-20 mA (current output version) 0-10 V (voltage output version)
Output (intrinsically safe): Terminals 1+, 2-
Transmission range : 0-20 mA (current output version) 0-10 V (voltage output version)
Calibrated accuracy : = 0.1 % incl. non-linearity and hysteresis at 20°C
Dimensions : 4.21" x 0.79" x 4.53" (10.7 x 2 x 11.5 cm)
Weight : 0.1 Kg
Shipping weight : 1 Kg
This signal conditioner provides the isolation for non-intrinsically safe applications.
The device drives a current signal from the control side to I/P converters, electrical valves and positioners.
The max. voltage drop at the input is 4 V DC, allowing for the connection of several KFD2-CD-1.32 repeaters due to the low voltage drop in order to maintain multiple galvanically isolated outputs (signal duplication).
General specifications | ||
---|---|---|
Signal type | Analog output | |
Functional safety related parameters | ||
Safety Integrity Level (SIL) | SIL 2 | |
Supply | ||
Connection | Power Rail or terminals 7+, 8- | |
Rated voltage | 20 ... 35 V DC | |
Ripple | within the supply tolerance | |
Rated current | ≤ 50 mA | |
Power dissipation | 1.2 W | |
Input | ||
Connection side | control side | |
Connection | terminals 9+, 10-, 11+ | |
Voltage drop | approx. 4 V at 20 mA | |
Limit | Input current: approx. ≤40 mA ; input voltage: ≤ 35 V | |
Transmission range | 0 ... 20 mA | |
Voltage | ≤ 4 V at 20 mA | |
Output | ||
Connection side | field side | |
Connection | terminals 1+, 2- | |
Voltage | 17 V at 20 mA | |
Current | 0 ... 20 mA | |
Load | max. 850 Ω | |
Transfer characteristics | ||
Accuracy | 0.1 % | |
Deviation | ||
After calibration | ≤ ± 0.1 % incl. non-linearity and hysteresis at 20 °C (68 °F) | |
Influence of ambient temperature | ≤ ± 0.01 % | |
Rise time | < 10 ms | |
Galvanic isolation | ||
Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | |
Input/power supply | functional insulation, rated insulation voltage 50 V AC | |
Output/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | |
Indicators/settings | ||
Display elements | LED | |
Labeling | space for labeling at the front | |
Directive conformity | ||
Electromagnetic compatibility | ||
Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) | |
Conformity | ||
Insulation coordination | EN 50178 | |
Galvanic isolation | EN 50178 | |
Degree of protection | IEC 60529 | |
Ambient conditions | ||
Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
Mechanical specifications | ||
Degree of protection | IP20 | |
Connection | screw terminals | |
Mass | approx. 100 g | |
Dimensions | 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1 | |
Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 | |
Data for application in connection with hazardous areas | ||
Certificate | TÜV 99 ATEX 1499 X | |
Marking | ![]() |
|
Directive conformity | ||
Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010 |
·1-channel signal conditioner
·24 V DC supply (Power Rail)
·Current input 0 mA ... 20 mA
·Current output 0 mA ... 20 mA
·Accuracy 0.1 %
·Up to SIL 2 acc. to IEC/EN 61508
