MOQ: | 1 |
Price: | negotiable |
Standard Packaging: | standard carton packing |
Delivery Period: | on request |
Payment Method: | T/T |
Supply Capacity: | 0-1000pcs |

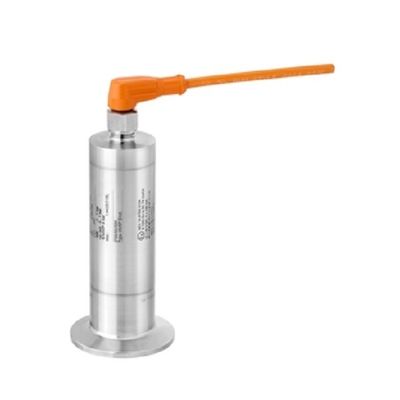

25bar 2.5MPa E&H Instrument Absolute And Gauge Pressure Cerabar PMP23
PMP23-AA1U1RBWSJ+QJ Absolute And Gauge Pressure Cerabar PMP23
Model:PMP23-AA1U1RBWSJ+QJ
Approval: AA Non-hazardous area
Output: 1 4-20mA
Electrical Connection: U Valve plug ISO4400 M16, IP65 NEMA Type 4X Encl.
Sensor Range: 1R 25bar/2.5MPa/375psi gauge, overload: 100bar/10MPa/1500psi
Calibration; Unit: B Sensor range; mbar/bar
Process Connection: WSJ Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDG
>>Accessory Enclosed: QJ Weld-in adapter G1, d=60, 316L, seal silicone O-ring, additional EPDM (EHEDG) O-ring, install > container
HS-Code: 90262020
Country of origin: DE
Country of dispatch: DE
Cost-effective pressure transducer with fully welded design for the food & beverage industry
Specs at a glance
Accuracy
0.3%
Process temperature
-10…+100°C
(+14…+212°F)
135°C for 1h
(275°F for 1h)
Pressure measuring range
400 mbar…+40 bar
(6...+600psi)
Measuring cell
+400 mbar…+40 bar
(+6 psi...+600 psi)
Field of application
The Cerabar PMP23 is a price-attractive and compact absolute or gauge pressure transmitter. The piezo-resistive measuring cell with flush-mounted 316L diaphragm was designed for applications in the hygienic industry. PMP23 offers various EHEDG and 3-A certified hygienic process connections, materials with FDA conformity, EG1935/2004 conformity, IP69 protection, optional IO-Link and hazardous area certificates. The device can be delivered with customized measuring ranges up to 40bar.
Pressure transducer to measure absolute or gauge pressure in gases or liquids.
Benefits
Common related models:
CLS21D-C1N1 |
8E1C08-AADBBAASAD2SHA1+AK |
DTI200-A13C2A |
5H2B02-AAACCAAD5S0A+AK |
CM42-IIA000EAZ00 |
FTL33-AA4U3ABWSJ |
FMR60-AAACCAGAA4GGJ+AK |
FMR52-BCKCCDBPAJK+AKZ1 |
52006326 |
CPF81-LH31C4 |
5P5B65-4290/0 |
FMP52-XT49/0 |
FTM51-AGG2L4A32AA |
FTM50-AGJ2A4A52AA |
FTL31-AA4M3AAWDJ |
PMP23-AA1U1PC3CJ |
FTL50H-AMA2AC2G4A |
CLD132-PMV138AB2 |
FTL33-AA4U3AB1GJ+RM |
FMU42-APB2A22A |
Important Terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
