| MOQ: | 1pcs |
| Price: | Negotiable |
| Standard Packaging: | Original packing |
| Delivery Period: | On request |
| Payment Method: | T/T |
| Supply Capacity: | 500pcs/month |
PMC71-MVE6/0 Absolute And Gauge Pressure Cerabar PMC71 E&H Instrument
Max. Turn down |
100:1 |
Max. overpressure limit |
60 bar (900 psi) |
Material process membrane |
Ceramic |

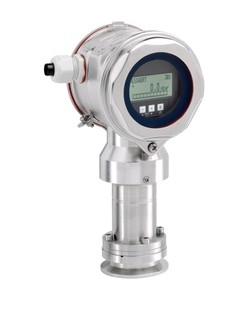

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.
Two chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +150°C (-40 to +302°F)
Measuring ranges: -1/0 up to to +40bar (+1.5 to +600psi)
Accuracy: ±0.05%, "Platinum" ±0.025%
International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals
Best fit for vacuum applications and applications with corrosive and abrasive media
Process safety through membrane breakage detection
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Available with mounted manifolds: always fit, always tested for leaks
Delivery details
SHIPPING:
•We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong. if you have any special needs,please notify me.
•It will take 3 to 7days to reach in your hands.China Post delivery schedule will be in 20-45 days. If you can't wait, please choose other express.
|
|
