Absolute PMP51 E&H Instrument Inductive Conductivity Measurement

Absolute PMP51 E&H Instrument Inductive Conductivity Measurement

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 500pcs/month
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
PMP51-30PN9/0
Accuracy:
Standard 0.1% Platinum 0.075%
Process Temperature:
-40°C...130°C (-40°F...266°F)
Pressure Measuring Range:
1 Bar...400 Bar (15 Psi...6000 Psi)
Process Pressure / Max. Overpressure Limit:
600 Bar (9000 Psi)
Main Wetted Parts:
316L
Max. Measurement Distance:
4000 M (13.123 Ft) H2O
Highlight:

Absolute E&H Instrument

,

PMP51 E&H Instrument

,

Absolute Inductive Conductivity Measurement

Product Description

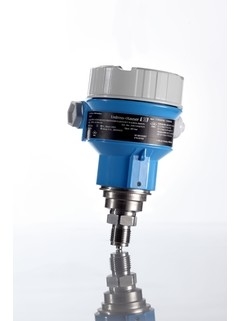

Absolute and gauge pressure Cerabar PMP51 E&H Instrument PMP51-30PN9/0



Measuring principle

Absolute and gauge pressure

Reference Accuracy

Standard 0.1%
Platinum 0.075%

Smallest calibratable span

20 mbar (0.3 psi)





Field of application

The Cerabar PMP51 digital pressure transmitter with metal membrane is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. PMP51 is designed for high pressure applications up to 400bar. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.



Single chamber aluminum or stainless steel (316L) housing.

  • Process connections: Threads, flanges or hygienic connections

  • Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h

  • Measuring range: -1/0 up to +400bar (-15/0 up to +6,000psi)

  • Accuracy: ±0.1%, "Platinum" ±0.075%

  • International explosion protection certificates, SIL, hygienic approvals, marine approvals

Benefits

Absolute PMP51 E&H Instrument  Inductive Conductivity Measurement 0Absolute PMP51 E&H Instrument  Inductive Conductivity Measurement 1



  • Accurate measurement of the process value even in the case of changing process temperature

  • Process safety assured with small flush mounted process connections in hygienic applications

  • For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511

  • Modular concept for easy replacement of display or electronics

  • Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

  • Seamless and independent system integration (HART/PA/FF)

  • Available with mounted manifolds: always fit, always tested for leaks
