6BABL1-62X2/139 IP66 IP67 E&H Instrument Thermal Mass Flowmeter

6BABL1-62X2/139 IP66 IP67 E&H Instrument Thermal Mass Flowmeter

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 500pcs/month
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
6BABL1-62X2/139
Max. Process Pressure:
20 Bar G (290 Psi G)
Medium Temperature Range:
–40 To +100 °C (–40 To +212 °F)
Nominal Diameter Range:
DN 80 To 1500 (3 To 60")
Transmitter Housing Material:
AlSi10Mg, Coated
Degree Of Protection:
IP66/67, Type 4X Enclosure
Inputs:
Status Input
Highlight:

Flowmeter E&H Instrument

,

IP66 E&H Instrument

,

IP67 Thermal Mass Flowmeter

Product Description

Proline T-Mass B 150 Thermal Mass Flowmeter 6BABL1-62X2/139 E&H Instrument

Nominal diameter range

DN 80 to 1500 (3 to 60")

Max. process pressure

20 bar g (290 psi g)

Medium temperature range

–40 to +100 °C (–40 to +212 °F)

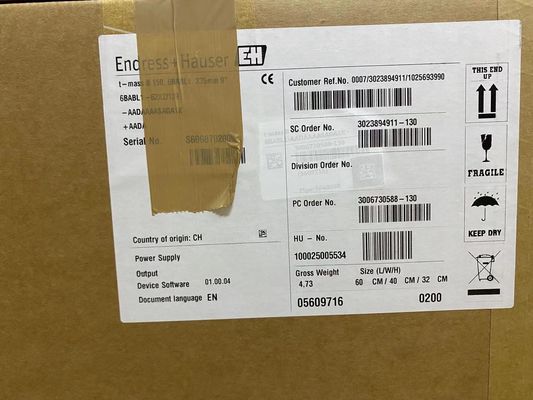

6BABL1-62X2/139 IP66 IP67 E&H Instrument  Thermal Mass Flowmeter 0

6BABL1-62X2/139 IP66 IP67 E&H Instrument  Thermal Mass Flowmeter 1

Specs at a glance

  • Max. measurement error

    3 % o.r.
    4 % o.r.
    5 % o.f.s.
    (depending on chosen option of ordering feature "Calibration flow")

  • Measuring range

    20 to 720 000 kg/h (45 to 1 587 600 lb/h)
    20 to 1 080 000 kg/h (45 to 2 381 400 lb/h)
    (for air, depending on chosen option of ordering feature "Calibration flow")

  • Medium temperature range

    –40 to +100 °C (–40 to +212 °F)

  • Max. process pressure

    20 bar g (290 psi g)

  • Wetted materials

    Transducer: 1.4404 (316L)
    Insertion tube: 1.4404 (316L); 1.4435 (316L)
    Connection:
    Compression fitting: 1.4404 (316L)
    Sealing ring: EPDM; HNBR; 1.4401 (316)
    Clamping ring: PEEK 450G

Field of application

The t-mass B 150 insertion version is suitable for large pipelines or rectangular ventilation ducts. It is designed for the cost-effective measurement of utility gases, in particular compressed air. It is a trending device aimed at sub-metering applications. Its 4-wire technology is contained within a rugged compact aluminum housing. Customer-specific settings are saved on the display and can be transferred from one device to another by means of the display.

  • Measuring principle is characterized by a high operable flow range and direct mass flow measurement

  • Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts.

Device properties

  • Insertion version for nominal diameter DN 80 to 1500 (3 to 60")

  • Installation and removal of sensor without process interruption

  • Easy installation

  • Device in compact version with DC 24 V power supply

  • 4-20 mA HART, pulse/frequency/switch output

  • Compact and robust transmitter

Benefits

  • Suitable for air, nitrogen, carbon dioxide and argon in circular piping or rectangular ducts

  • Optimal process monitoring – easy measurement even at low pressures and flow velocities

  • Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free

  • Reliable flow trending – multivariable measurement

  • Fast and efficient commissioning – guided operating menus

  • High plant availability – self-diagnostics and error monitoring

  • Automatic recovery of data for servicing
