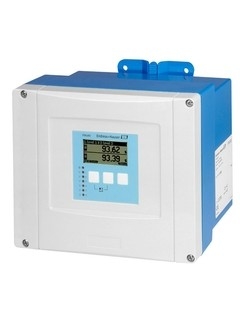

Prosonic FMU90 E&H Instrument Ultrasonic Measurement Time Of Flight

Prosonic FMU90 E&H Instrument Ultrasonic Measurement Time Of Flight

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 500pcs/month
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
FMU90-N11CA232AA1A
Measuring Principle:
Ultrasonic
Accuracy:
+/- 2mm + 0.17% Of Measured Distance
Ambient Temperature:
-40 °C ... 60 °C
Communication:
Up To 2x 4 ... 20 MA HART Profibus DP
Components:
Sensors FDU9x
Certificates / Approvals:
ATEX, CSA
Highlight:

Prosonic FMU90 E&H Instrument

,

Ultrasonic Measurement E&H Instrument

Product Description

Ultrasonic measurement Time-of-Flight Prosonic FMU90 E&H Instrument

Prosonic FMU90 E&H Instrument Ultrasonic Measurement Time Of Flight 0Prosonic FMU90 E&H Instrument Ultrasonic Measurement Time Of Flight 1



Supply / Communication

90 ... 253 VAC

Accuracy

+/- 2mm + 0.17% of measured distance

Communication

up to 2x 4 ... 20 mA HART
Profibus DP

Field of application

Prosonic FMU90 separated version with field housing or top hat rail housing for control cabinet instrumentation are suited for continuous, non-contact level measurement of fluids, pastes, sludge and powdery to coarse bulk solids. Also the flow measurement in open channels and weirs is possible as the simultaneous measurement of level and flow in a storm water overflow basin with only 1 sensor. Up to 6 relays for tendency alarm, flow pulse output or backwater/sludge alarm, 1 or 2 channel version.



Level measurement of fluids and bulk materials with 1 or 2 sensors for measuring of up to 45m (148ft) and level limit detection. Pump control, rake control and as option: additional pump control function.

  • Calculations: Average, difference, sum

  • Application flow: Flow measurement in open channels and weirs with 1 or 2 sensors

  • Flow measurement with back water or sludge detection

  • Up to 3 totalizers and 3 counters

  • Counting or time pulse output for control of external units

Benefits







  • Simple, menu-guided operation with 6-line plain text display, 15 languages selectable

  • Envelope curves on the display for quick and simple diagnosis

  • Easy operation, diagnosis and measuring point documentation with the supplied "FieldCare" operating program

  • Time-of-Flight correction via integrated or external temperature sensors

  • Linearisation (up to 32 points, freely configurable) for the most common flumes and weirs
    pre-programmed and selectable

  • Online calculation of the flume-/weir-flows via integrated flow curves

  • Automatic detection of the sensors FDU9x

  •
