| Max. Measurement Error: | 2% - 10% | Measuring Range: | 1"...40" |
|---|---|---|---|
| Medium Temperature Range: | -20...+85°C | Max. Process Pressure: | 100 Bar (1.740 Psi) |
| Display/Operation: | LED LCD-Display | Degree Of Protection: | IP 66 |
| High Light: | Flowphant T DTT35 Flow Switch,Flow Switch E&H Instrument,DTT35-A1A111DB2BAB |
||

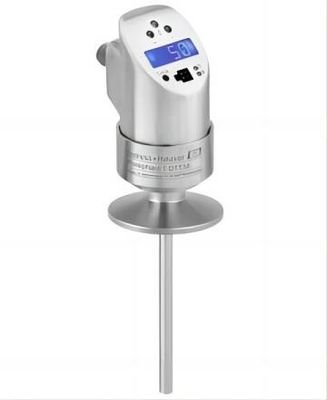

Flowphant T DTT35 Flow Switch E&H Instrument DTT35-A1A111DB2BAB
Max. process pressure |
100 bar (1.740 psi) |
Nominal diameter range |
DN 25...1000 |
Measuring principle |
Thermal |
The switch is designed for the safe monitoring and display of relative mass flow rates of liquid media in hygienic applications, for example the monitoring of cooling water circulation systems and filter monitoring in the beverage industry. It can be selected between one or two switch outputs as well as one switch output and one standardized analog output for flow rates or temperature values. A variety of hygienic process connections leads to a flexible use.
Flow switch for monitoring and displaying relative mass flow rates of liquid media in the range from 0.03 to 3 m/s (0.1 to 9.84 ft/s). Flowphant T DTT35 − with process connections for hygienic applications.
Application examples:
Monitoring cooling water circulation systems of pumps, turbines, compressors and heat exchangers
Leak monitoring in process lines
Monitoring pump functionality
Monitoring lubrication systems
Filter monitoring in the beverage industry
Practically no pressure loss
Configuration software FieldCare for quick configuration and reliable storage of device settings
Optional: second switch output or 4 to 20 mA analog output for temperature monitoring or for outputting the flow as a percentage
Function check and process information onsite thanks to digital display at device
Top housing section which can be rotated 310° and rotatable display make it possible to read the measured values in all orientations
3-A approval
