DMA50-AAAAA1 E&H Instrument Picomag Electromagnetic Flowmeter IP65 / 67
  • name
  • name
  • name
  • name

DMA50-AAAAA1 E&H Instrument Picomag Electromagnetic Flowmeter IP65 / 67

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 5000pcs/month
Details Information
Product Description
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
DMA50-AAAAA1
Max. Measurement Error:
+/-0.8% O.r. +/- 0.1% O.f.s
Measuring Range:
Up To 750 L/min
Medium Temperature Range:
-10 To 70°C (+14 To +158 °F)
Max. Process Pressure:
16 Bar
Wetted Materials:
PEEK, Stainless Steel, FKM, EPDM
Electrodes:
1.4404/316L
Highlight:

Picomag Electromagnetic Flowmeter

,

Picomag Electromagnetic Flowmeter IP65

,

E&H Instrument DMA50-AAAAA1

Product Description

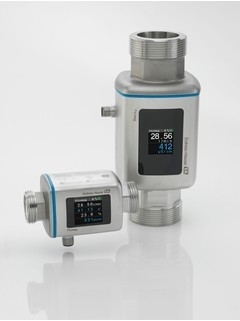

E&H Instrument Picomag electromagnetic flowmeter DMA50-AAAAA1



Measuring principle

 Electromagnetic

Nominal diameter range

 DN15 to 50 (1/2 to 2")

Measured variables

 Volume flow, Temperature, Conductivity



DMA50-AAAAA1 E&H Instrument Picomag Electromagnetic Flowmeter IP65 / 67 0DMA50-AAAAA1 E&H Instrument Picomag Electromagnetic Flowmeter IP65 / 67 1



Specs at a glance

  • Max. measurement error

    Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s

  • Measuring range

    up to 750 l/min

  • Medium temperature range

    -10 to 70°C (+14 to +158 °F)
    Permissible short-term temperature, maximum one hour:
    85 °C (185 °F)
    Repetition after 4 hours at the earliest

  • Max. process pressure

    16 bar

  • Wetted materials

    PEEK, Stainless Steel, FKM, EPDM
    Electrodes: 1.4404/316L

Field of application

Picomag is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.



  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.

Device properties

  • High shock and vibration resistance

  • Degree of protection: IP65/67

  • Empty pipe detection

  • Wireless remote access via Bluetooth SmartBlue app

  • IO-Link and various I/Os for all line-sizes

  • 1.4" TFT color display with backlight

Benefits

  • Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection

  • Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement

  • Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing

  • Quick offline configuration check – unique, comfortable knock functionality

  • Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue App

  • Instant local process monitoring – large, user-friendly display of all measurement activities

  • Flexible integration into all fieldbus systems – plug-and-play device with IO-Link
