PRODUCTS DETAILS
Home > Products >
Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A

Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 5000pcs/month
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
CLS12-B1D5A
Measurement Range:
K=0.01: 0 To 20 µS/cm
Process Temperature:
-30 To 160 °C (-22 To 320 °F)
Measuring Principle:
Conductive
Electodes:
Stainless Steel 1.4571
Sealing:
PEEK / EPDM
Temperature Sensor:
Integrated Pt100
Highlight:

endress hauser analog conductivity sensor

,

condumax analog conductivity sensor

Product Description



Analog Conductivity Sensor Condumax CLS12 E&H Instrument CLS12-B1D5A



Ex certification

ATEX

Additional certifications

Calibration certification with cellconstant

Process temperature

-30 to 160 °C (-22 to 320 °F)

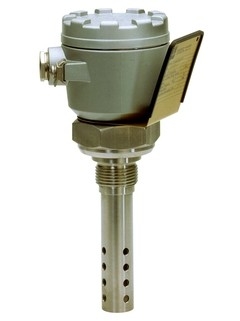

Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A 0



Specs at a glance

  • Measurement range

    k=0.01: 0 to 20 µS/cm
    k= 0.1: 0 to 200 µS/cm

  • Process temperature

    -30 to 160 °C (-22 to 320 °F)

  • Process pressure

    Max. 40 bar up to 100 °C (max. 580 psi up to 212 °F) without CLA 751 flow chamber
    Max. 12 bar up to 150 °C (max. 174 psi up to 302 °F) with CLA 751 flow chamber

Field of application

Condumax CLS12 is a robust conductivity sensor for steam/water cycles in power plants. It is optimized for low conductivities (even under high temperatures and pressures) to protect your processes from deposits and corrosion. Low maintenance and simple to commission (large connection compartment), this is the ideal sensor for tough environments.



Condumax CLS12 measures conductivity in the steam/water cycle in the power & energy industry:

  • Condensate monitoring

  • Boiler feedwater monitoring

  • Boiler blowdown control

The sensor can be used in all low conductivity applications with high temperatures and pressures.

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

  • Reliable and accurate measuring values at low conductivities

  • Optimized for high pressures and temperatures up to 160°C (320°F)

  • Easy cleaning thanks to stainless steel body and removable outer electrode

  • Robust design for high durability

  • Quality certificate stating the individual cell constant

products
PRODUCTS DETAILS
Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A
MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 5000pcs/month
Detail Information
Place of Origin
DE
Brand Name
Endress Hauser
Certification
Rohs
Model Number
CLS12-B1D5A
Measurement Range:
K=0.01: 0 To 20 µS/cm
Process Temperature:
-30 To 160 °C (-22 To 320 °F)
Measuring Principle:
Conductive
Electodes:
Stainless Steel 1.4571
Sealing:
PEEK / EPDM
Temperature Sensor:
Integrated Pt100
Minimum Order Quantity:
1pcs
Price:
Negotiable
Packaging Details:
Original packing
Delivery Time:
On request
Payment Terms:
T/T
Supply Ability:
5000pcs/month
Highlight

endress hauser analog conductivity sensor

,

condumax analog conductivity sensor

Product Description



Analog Conductivity Sensor Condumax CLS12 E&H Instrument CLS12-B1D5A



Ex certification

ATEX

Additional certifications

Calibration certification with cellconstant

Process temperature

-30 to 160 °C (-22 to 320 °F)



Condumax Analog Conductivity Sensor CLS12 E&H Instrument CLS12-B1D5A 0



Specs at a glance

  • Measurement range

    k=0.01: 0 to 20 µS/cm
    k= 0.1: 0 to 200 µS/cm

  • Process temperature

    -30 to 160 °C (-22 to 320 °F)

  • Process pressure

    Max. 40 bar up to 100 °C (max. 580 psi up to 212 °F) without CLA 751 flow chamber
    Max. 12 bar up to 150 °C (max. 174 psi up to 302 °F) with CLA 751 flow chamber

Field of application

Condumax CLS12 is a robust conductivity sensor for steam/water cycles in power plants. It is optimized for low conductivities (even under high temperatures and pressures) to protect your processes from deposits and corrosion. Low maintenance and simple to commission (large connection compartment), this is the ideal sensor for tough environments.



Condumax CLS12 measures conductivity in the steam/water cycle in the power & energy industry:

  • Condensate monitoring

  • Boiler feedwater monitoring

  • Boiler blowdown control

The sensor can be used in all low conductivity applications with high temperatures and pressures.

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Benefits

  • Reliable and accurate measuring values at low conductivities

  • Optimized for high pressures and temperatures up to 160°C (320°F)

  • Easy cleaning thanks to stainless steel body and removable outer electrode

  • Robust design for high durability

  • Quality certificate stating the individual cell constant
