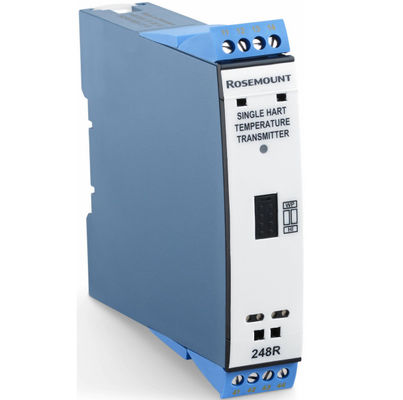

Rosemount 248RAI7C1Q4 Rail Mount Temperature Transmitter Single Sensor Easy Installation

MOQ:	1
Price:	negotiable
Standard Packaging:	carton
Delivery Period:	on request
Payment Method:	T/T
Supply Capacity:	1~1000pcs

Details Information

Product Description

Detail Information

Place of Origin

Singapore

Brand Name

Emerson Rosemount

Certification

Model Number

Origin:

Singapore

Model:

Input:

Single Sensor Capability With Universal Sensor Inputs (RTD, T/C, MV, Ohms)

Output Signal:

4-20 MA /HART™ Protocol

Housing:

DIN B Head Mount

Calibration Options:

5-point Calibration

Highlight:

Rosemount Rail Mount Temperature Transmitter

248RAI7C1Q4 Rail Mount Temperature Transmitter

Rosemount 248RAI7C1Q4 Rail Mount Temperature Transmitter

Product Description

Rosemoun 248 Rail Mount Temperature Transmitter with RK Option and HART® 7 Protocol

Basic temperature transmitter offers a cost effective solution for temperature monitoring points

■ Rail mount ■ HART® /4–20 mA Protocol

■ Single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)

■ Transmitter-sensor matching with Callendar Van Dusen constants

■ Meets NAMUR NE21, NE43, NE44, NE89 and NE107 compliant diagnostics information Standard transmitter design provides flexible and reliable performance in process environments

■ Offers improved measurement accuracy and reliability over direct-wiring a sensor to the digital control system for a lower overall installation cost ■ One-year stability rating reduces maintenance costs

■ Open/short sensor diagnostics assist with detecting issues in the sensor loop

■ Compensation for ambient temperatures enhances transmitter performance

Specifications Environmental conditions Ambient operating temperature range Standard: -50 to +85 °C Storage temperature -50 to +85 °C Calibration temperature 23...25 °C Humidity < 99% RH (non-cond.) Protection degree IP20 Mechanical specifications Dimensions (H x W x D) 109 x 23.5 x 104 mm Weight, single input 150 g Maximum wire size 0.13...2.08 mm2 /AWG 26...14 stranded wire Screw terminal torque 0.5 Nm Vibration: IEC 60068-2-6 ■ 2...25 Hz: ±1.6 mm ■ 25...100 Hz: ±4 g

Rosemount 248RAI7C1Q4 Rail Mount Temperature Transmitter Single Sensor Easy Installation 0
