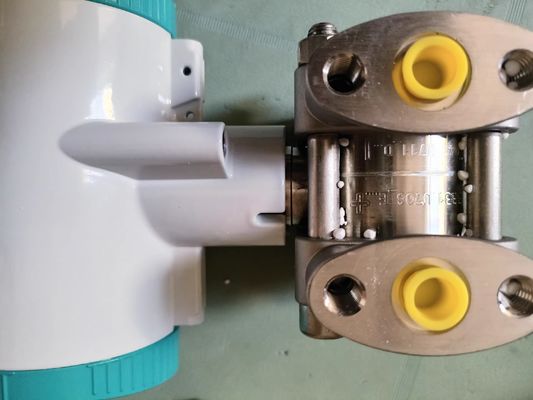

Siemens cast aluminum shell 7MF4033-3DA10-1BA1 intrinsically safe explosion-proof differential pressure transmitter

Siemens cast aluminum shell 7MF4033-3DA10-1BA1 intrinsically safe explosion-proof differential pressure transmitter

The Siemens cast aluminum casing 7MF4033-3DA10-1BA1 intrinsically safe explosion-proof differential pressure transmitter can be applied in industrial fields with chemical and mechanical loads. The electromagnetic compatibility within the range of 10kHz to 1GHz makes the DS III pressure transmitter suitable for high electromagnetic radiation applications. Transmitters that meet the requirements of "intrinsic safety" and "explosion-proof" can be installed in potentially explosive atmospheres (Zone 1) or Zone 0. This transmitter has an EC type test certificate and complies with European standards (ATEX). The power supply categories for "intrinsic safety" transmitters used in zone 0 are "ia" and "ib". The transmitter can be connected to various designed remote sealing components, suitable for special applications such as high viscosity materials. The pressure transmitter can be operated through three buttons, using a HART controller, or through PROFIBUS PA or FF fieldbus interfaces.

Gauge pressure transmitter
·Measurement variables: gauge pressure of corrosive and non corrosive gases, vapors, and liquids.
·Range (continuously adjustable)
DS III HART series: 0.01 .. 400 bar g
·Nominal measurement range
DS III PA and FF series: 1 .. 400 bar g

Absolute pressure transmitter
⊙ Measurement variables: pressure of corrosive and non corrosive gases, vapors, and liquids.
⊙ Range (continuously adjustable)
DS III HART series: 8.3 bar a... 100 bar a
⊙ Nominal measurement range
DS III PA and FF series: 250 bar a... 100 bar a
⊙ There are two series in total:
-Gauge pressure series
-Differential pressure series

Differential pressure and flow transmitter
⊙ Measurement variables:
-Differential pressure
-Small positive or negative pressure
-Flow rate q~√ Δ p (matched with orifice plate and other throttling and pressure devices)
⊙ Range (continuously adjustable)
DS III HART series: 1 bar... 30 bar
⊙ Nominal measurement range
DS III PA and FF series: 20 bar... 30 bar

advantage

·Good quality, long lifespan
·Maintain high reliability under chemical and mechanical loads
·Suitable for corrosive and non corrosive gases, vapors, and liquids
·Rich diagnostic and simulation functions
·Measurement components are separated from electronic components and do not require recalibration
·The smallest * error
·Long term drift is small
·The liquid receiving components are made of high-grade materials (stainless steel, Hastelloy, Monel alloy, tantalum)
·The DS III transmitter with HART communication has a range of 0.01 mbar to 400 mbar.
·The nominal measurement range of the transmitter is from 1400 bar, DS III PA (PROFIBUS PA) and FF (Foundation fieldbus)
·High measurement accuracy
·Through control keys and HART communication, PROFIBUS PA communication or FF fieldbus interface.

Parameter settings can be made through control keys, HART communication, PROFIBUSPA, or the Foundation's on-site main interface. The rich functionality makes this pressure transmitter highly suitable for the needs of factories. Despite having a large number of setting options, the operation is still very simple. Transmitters that meet the requirements of "intrinsic safety" and "explosion-proof" can be installed in potentially explosive atmospheres (Zone 1) or Zone 0. This transmitter has an EC type test certificate and complies with European standards (ATEX). The transmitter can be connected to various designed remote sealing components for special applications such as high viscosity materials.
Different models of DS III pressure transmitters can be used to measure:
·Gauge pressure
·Pressure
·Differential pressure
·Liquid level
·Traffic volume
