AI810 Analog Input Module

AI810 Analog Input Module
AI810 Analog Input Module AI810 Analog Input Module AI810 Analog Input Module AI810 Analog Input Module AI810 Analog Input Module AI810 Analog Input Module

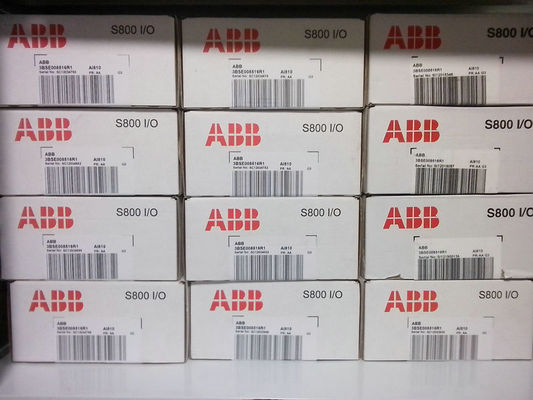

Large Image :  AI810 Analog Input Module

Product Details:
Place of Origin: Estonia
Brand Name: ABB
Certification: ROHS
Model Number: AI810
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 1~1000pcs
Detailed Product Description
Packing: Carton 20*10*10cm Color: White
Material: Plastic&metal Model: AI810
Products Name: Analog Input 8 Ch Type: 3BSE008516R1
Shipping Weight: 0.5kg Manufacturer: ABB
High Light:

AI810 Analog Input Module


ABB Analog Input Module


3BSE008516R1 Analog Input Module

ABB AI810 Analog Input 8 ch 3BSE008516R1



The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.

The voltage input is able to withstand an over or undervoltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-.



Features and benefits
8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs
1 group of 8 channels isolated from ground
12 Bit resolution
Input shunt resistors protected to 30 V by PTC resistor
Analog inputs are short circuit secured to ZP or +24 V
The input withstand HART communication.


Common models for reference:


CI801 DI810 DP820 TB805
CI801KIT DI811 DP840 TB845
CI840A DI814 TU810V1 TB806
CI840KIT DI820 TU812V1 TB846
TU846 DI821 TU811V1 TK801V003
TU847 DI825 TU813 TK801V006
FS801K01 DI830 TU814V1 TK801V012
AI810 DI831 TU830V1 TB807
AI815 DI840 TU831V1 TB820V2
AI820 DI885 TU833 TB825
AI825 DI890 TU835V1 TB840A
AI830A DI801 TU836V1 TB810
AI835A DI802 TU837V1 TB811
AI843 DI803 TU838 TB842
AI845 DO810 TU839 TU807
AI890 DO814 TU842 TU840
AI893 DO815 TU843 TU841
AI895 DO820 TU844 TU848
AI801 DO821 TU845 TU849
AO810V2 DO840 TU850 TK811V015
AO815 DO890 TU890 TK811V050
AO820 DO801 TU891Z TK811V150
AO845A DO802 TY801K01 TK812V150
AO890 AO801 TY804K01 TK812V015
