Product Details:
Payment & Shipping Terms:
|
| Model: | EJA530E-JBS4N-012EL | Shipping Weight: | 5kg |
|---|---|---|---|
| Accuracy:: | ±0.055% Of Span | Manufacturer: | Yokogawa |
| Installation: | In-Line Mount | Product Name: | In-Line Mount Gauge Pressure Transmitter |
| Response Time: | 90 Msec | Stability: | ±0.1% Of URL Per 10 Years |
| High Light: | EJA530E Yokogawa Gauge Pressure Transmitter,90 ms Yokogawa Gauge Pressure Transmitter,2MPa In Line Pressure Transmitter |
||

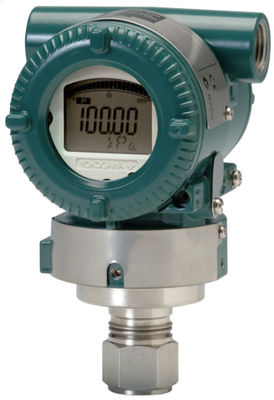

EJA530E-JBS4N-012EL EJA530E In-Line Mount Gauge Pressure Transmitter
Description:
Manufacturer : Yokogawa
Product No. : EJA530E-JBS4N-012EL
Product type : EJA530E Gauge Pressure Transmitter
Output signal : J = 4 to 20 mA DC Output with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : B = 0.1 to 2 MPa (14.5 to 290 psi)
Wetted parts material : S = Process connector 316L SST #, Diaphragm Hastelloy C-276 *3#, Others 316L SST #
Process connections : 4 = 1/2 NPT female
N = Always N
0 = Always 0
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs
Integral indicator : E = Digital indicator with the range setting switch (push button)
Mounting bracket : L = 316 SST 2-inch pipe mounting
Shipping weight : 3 Kg
Additional Informaiton:
The EJA530E is a high-performance gauge pressure transmitter used to measure liquid, gas, or steam pressure. Featuring Yokogawa DPharp
sensor technology, the EJA530E delivers measurements accurately, quickly, and reliably.
Accuracy: ±0.055% of Span
Response Time: 90 msec
Stability: ±0.1% of URL per 10 years
Models Reference:
| EJA530E-JBS4N-012EL |
| EJA530E-DBS4N-012DL |
| EJA530E-JDS4N-017EL |
| EJA530E-JBS7N-012NN |
| EJA530E-JBS7N-017DL/D3 |
| EJA530E-JCS4N-012NL/D4 |
| EJA530E-DCS4N-012DL/D4 |
| EJA530E-DAS4N-012DL/D4 |
| EJA530E-JDS7N-019EL/KS21/D3 |
| EJA530E-JAS8N-014NN/KU22/M15 |
| EJA530E-FDS7N-019DL/KS26/D3/X2/T08/M15 |
| EJA530E-JDS7N-019EL/KU22/D3/X2/T08/M15 |
| EJA530E-FDS7N-019DL/KS26/D3/X2/T08/M15/PE3 |
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
Important Terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
