Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rosemount 8800 Vortex Flowmeter | Model: | 8800DW010Sk3N2D1I1M5P2Q4 |
|---|---|---|---|
| Origin: | China | Manufacturer: | Emerson |
| Temperature Sensor Accuracy: | ± 2.2°F (1.2°C) | Turndown: | 38:1 |
| Output: | 4-20 MA With HART 5 Or 7 | Wetted Materials: | Stainless Steel; 316 / 316L And CF3M Nickel Alloy; C-22 And CW2M High Temp Carbon Steel; A105 And WCB Low Temp Carbon Steel; LF2 And LCC Duplex; UNS S32760 And 6A Consult Factory For Other Wetted Material |
| High Light: | 8800 multivariable flow transmitter,20MA multivariable flow transmitter,MultiVariable Vortex Flow Meter |
||

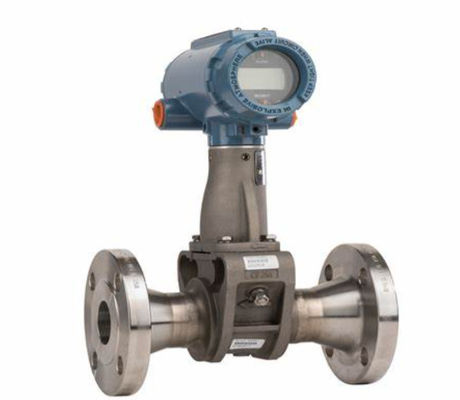

Emerson Rosemount 8800 MultiVariable Vortex Flow Meter 8800DW010
Description:
Manufacturer : Rosemount
Product No. : 8800DW010Sk3N2D1I1M5P2Q4
Product Type : Vortex Flow Meter
Meter style : F = Flanged
Line Size : 010 = 1 inch (50 mm)
Wetted materials : S = 316 wrought stainless and CF-3M cast stainless; Material of construction is 316/316L.
Process connection style and pressure rating : A1 = ASME B16.5 (ANSI) RF Class 150
Sensor process temperature range : N = Standard: –40 to +450 °F (–40 to +232 °C)
Housing material and conduit entries : 2 = Aluminum housing, two M20 x 1.5 conduit entries
Outputs : F = FOUNDATION Fieldbus digital signal
Calibration : 1 = Flow calibration
Hazardous area approvals : I1 = ATEX Intrinsic Safety ia; Intrinsic Safety ic
Quality certificate
Rosemount 8800D Future Enhancements:
MultiVariable and temperature compensation functionality
with an integrated temperature sensor.
PlantWeb© Advanced Diagnostics such as Process Alerts
and Sensor Health.
Help for all parameters integrated into the Device
Descriptor.
Common models:
| 8800DF020SK1N2D1E5M5 |
| 8800DR020SK1N2D1E5M5 |
| 8800DF020SA1N2D1M5 |
| 8800DF060SA1N1D1M5 |
| 8800DF040SA1N2D1M5Q4 |
| 8800DF020SA7E1D1M5Q4 |
| 8800DW015SK3N2D1I1M5Q4 |
| 8800DF060SA1N2D1I1Q4M5 |
| 8800DW010SK1N1D1I1M5Q4 |
| 8800DF020SA3N2P1E1Q4Q8PD |
| 8800DF005SA1N2D1I1R10Q4 |
| 8800DF010SA1N2D1I1R10Q4 |
| 8800DW030SA3N1D1E5M5R20Q4 |
| 8800DF060SA1N2D1M5Q4Q8 |
| 8800DW010SA3N2D1M5Q4Q8 |
| 8800DW020SK3N2D1I1M5P2Q4 |
| 8800DW010SK3N2D1I1M5P2Q4 |
| 8800DF020SA3N1P1MTAM5R50Q4 |
| 8800DF020SA7E1D1E5M5Q4 |
| 8800DF060SA3N7D1I1M5Q4Q8T1 |
| 8800DF030SA1N1D1MCAM5HR7Q4 |
| 8800DF080SA3E1D1MCAM5HR7Q4 |
| 8800DD060SA8N2F1E1M5A01Q4Q8 |
| 8800CW030SA3N1D1E5M5R20Q4 |
| 8800DW010SA1N2Q1K7M5Q4Q8 |
| 8800DF005SA1N3F1I1M5A01Q4 |
| 8800DF010SA1N3F1I1M5A01Q4 |
| 8800DF015SA1N3F1I1M5A01Q4 |
| 8800DF020SA1N3F1I1M5A01Q4 |
| 8800DF030SA1N3F1I1M5A01Q4 |
| 8800DF040SA1N3F1I1M5A01Q4 |
| 8800DF080SA1N3F1I1M5A01Q4 |
| 8800DD060CA8N2F1E1M5A01J7Q4Q8 |
| 8800DF060SA3N7D1I1M5Q4Q8Q5T1 |
Important terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs: 8kg
4. Unit dimensions: (W x L x H) : 30*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
