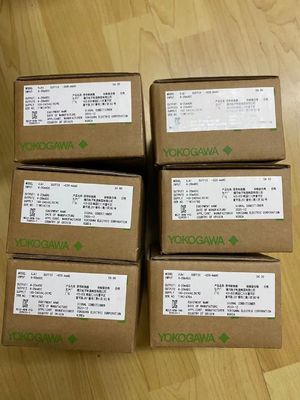

Yokogawa Universal Temperature Converter VJA1-026-AAA0

Yokogawa Universal Temperature Converter VJA1-026-AAA0

Description:

Manufacturer : Yokogawa
Product No. : VJA1-026-AAA0
Product type : VJA1 Distributor
Model :VJA1-0
Output configuration :2 = Dual
Power supply : 6 = 100-240 V AC/DC (Operating range: 85-264 V)
Input signal : A = 4 to 20 mA DC
Output-1 signal : A = 4 to 20 mA DC
Output-2 signal : A = 4 to 20 mA DC
Transmitter power supply : 25.25±0.25 V DC (provided with a current limiter to keep the current between 25 and 35 mA)
External dimensions : 76 (H) × 29.5 (W) × 124.5 (D) mm (including a socket)
Shipping Weight : 2 Kg

General

This plug-in type universal temperature converter converts input signal (thermocouple, RTD or mV signal) into isolated DC voltage signal or DC current signal. • Universal input enables selection of input type (thermocouple, RTD, mV signal) and of measuring ranges within specifications. • DC voltage signal, DC current signal, communication output (RS485), or alarm output (2 relay contacts) is selectable as output-2. • Change of input types / input ranges/burnout action, and I/O monitoring etc. can be done through Handy Terminal (JHT200). • For the Fahrenheit display, specify the option “/DF”

Ordering Information

Model and suffix code Shipped after setting the input type (selected from Table 1), input range (within available measuring range in Table 1), and burnout action as specified. • Model and suffix code: e.g. VJU7-026-UAA0 • Input type : Pt100 (ITS-90) • Input range : 0 to 100 °C • Burnout (required item) : UP
