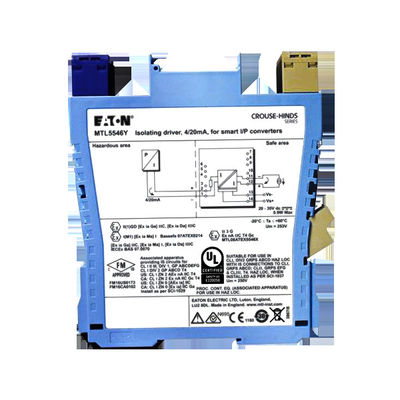

MTL5546Y MTL Safety Barrier

MTL5546Y MTL Safety Barrier
MTL5546Y MTL Safety Barrier MTL5546Y MTL Safety Barrier

Large Image :  MTL5546Y MTL Safety Barrier

Product Details:
Place of Origin: UK
Brand Name: MTL
Certification: ROHS
Model Number: MTL5546Y
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100+pc+on stock
Detailed Product Description
Manufacture: MTL Number Of Channels: One
Working Range: 4 To 20mA Communications Supported: HART
LED Indicator: Green: Power Indication Shipping Weight: 1.0 Kg
Temperature Drift: 1.0µA/°C Maximum Load Resistance: 800Ω (16V At 20mA)
High Light:

MTL5546Y MTL Safety Barrier

,

20ma MTL Safety Barrier

,

mtl safety barrier instrument

MTL5546Y MTL Isolating Driver for 4–20mA HART valve positioners with line fault detection

The MTL5546Y-T accepts a 4/20mA floating signal from a safe-area
controller to drive a current/pressure converter (or any other load up to
800Ω) in a hazardous area. For HART valve positioners, the module also
permits bi-directional transmission of digital communication signals.
Process controllers with a readback facility can detect open circuit in
the field wiring: if this occurs, the current taken into the terminals drops
to a preset level.


SPECIFICATION
See also common specification
Number of channels   One
Location of I/P converter
Zone 0, IIC, T4–6 hazardous area if suitably certified
Div. 1, Group A, hazardous location
Working range
4 to 20mA
Digital signal bandwidth
500Hz to 10kHz
Maximum load resistance
800Ω (16V at 20mA)
Output resistance
> 1MΩ
Under/over range capability
Under range = 1mA
Over range = 24mA (load ≤ 520Ω)
Input and output circuit ripple
< 40µA peak-to-peak
Transfer accuracy at 20°C
Better than 20µA
Temperature drift
< 1.0µA/°C
