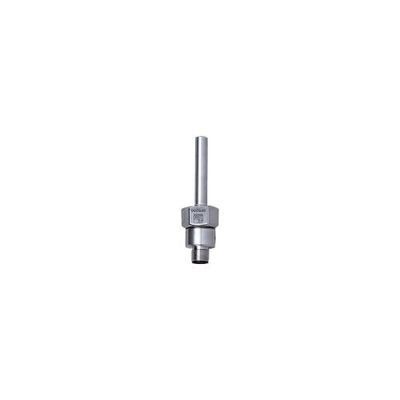

IFM SF5200 Flow sensor for connection to an evaluation unit SFD10ADB /US-100
Part Number: SF5200
Product Name: Flow sensor
Oirgin: Germany
Manufacturer: IFM
Sepcification
Reliable monitoring of liquids and gases in pipes
For connection to an evaluation unit
Simple process connection via adapter
Very high pressure resistance
M12 connector for fast and easy connection
Product characteristics
Probe length L [mm] 45
Process connection M18 x 1,5 Internal thread
Application
Application high temperature
Media Liquids; Gases
Medium temperature [°C] -25...80
Pressure rating [bar] 300
Electrical data
Connection to control monitor VS3000
Measuring/setting range
Probe length L [mm] 45
Liquids
Setting range [cm/s] 3...300
Greatest sensitivity [cm/s] 3...60
Gases
Setting range [cm/s] 200...3000
Greatest sensitivity [cm/s] 200...800
Accuracy / deviations
Max. temperature gradient of medium [K/min] 300
Reaction times
Response time [s] 1...10
Operating conditions
Protection IP 67
Tests / approvals
Shock resistance
DIN IEC 68-2-27 40 g (11 ms)
Vibration resistance
DIN IEC 68-2-6 10 g (55...2000 Hz)
MTTF [years] 8213
Mechanical data
Weight [g] 88.5
Housing for adapter
Dimensions [mm] M18 x 1.5
Thread designation M18 x 1.5
Material stainless steel (1.4404 / 316L)
Materials (wetted parts) stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection M18 x 1,5 Internal thread
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Maximum cable length: 100 m
