Great System International Limited
|
Product Details:
Payment & Shipping Terms:
|
| Manufacture: | MTL | MaterialEstimated Lead Time: | Usually Ships In 1-10 Working Days. |
|---|---|---|---|

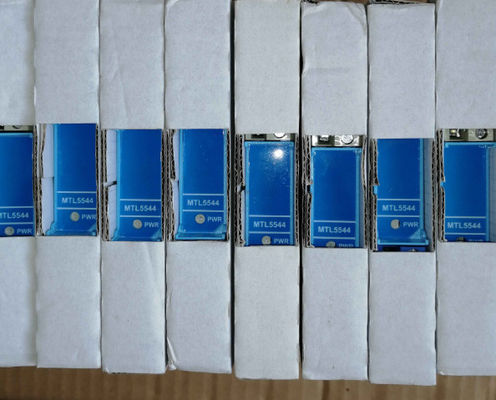

| Product No.: | MTL5544 | Product Type: | Repeater Power Supply |
| Number Of Channels: | Two | Safe-area Circuit Ripple: | < 50µA Peak-to-peak |
| Transfer Accuracy At 20°C: | Better Than 15µA | Temperature Drift: | < 0.8µA/°C |
Estimated Lead Time : Usually ships in 1-10 working days.
Manufacturer : MTL Instruments
Product No. : MTL5544
Product type : Repeater Power Supply
2-channel, 4/20mA, HART®, 2- or 3- wire transmitters
The MTLx544 provides fully-floating dc supplies for energising two conventional 2-wire or 3-wire 4/20mA or HART transmitters located in a hazardous area, and repeats the current in other circuits to drive two safe-area loads.
For smart transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current.
Alternatively, the MTLx544S acts as a current sink for a safe-area connection rather than driving a current into the load.
Separately powered current sources, such as 4-wire transmitters,
can be connected but will not support HART communication.
Shipping weight: 1 Kg
The MTLx544 provides fully-floating dc supplies for energising two
conventional 2-wire or 3-wire 4/20mA or HART transmitters located in
a hazardous area, and repeats the current in other circuits to drive two
safe-area loads. For smart transmitters, the unit allows bi-directional
transmission of digital communication signals superimposed on the
4/20mA loop current. Alternatively, the MTLx544S acts as a current
sink for a safe-area connection rather than driving a current into the
load. Separately powered current sources, such as 4-wire transmitters,
can be connected but will not support HART communication
