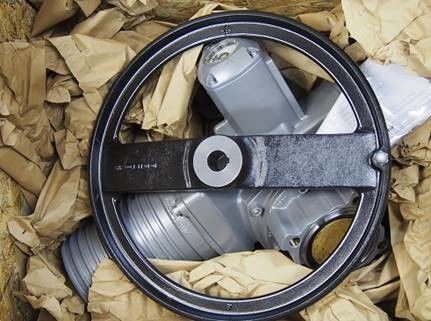

Actuators of the SA type range for open-close duty and positioning duty are rated for class A and B or types of duty S2 - 15 min. A special version for longer running is available for the S2 - 30 min duty.

The modulating actuators of the SAR range are rated for class C or types of duty S4 - 25 %. Special versions for S4 - 50 % and S5 - 25 % are also available.

Actuators of type range SA/SAR can be combined with various controls from simple OPEN-CLOSE control to the micro-controlled version with logging of operating data or fieldbus interface.

Design features SA

• Torque range from 10 Nm to 32,000 Nm
• Output speeds from 4 to 180 rpm
• Limit and torque sensing
• Available with 3-ph AC, 1-ph AC and DC motors
• Handwheel for manual operation

Design features SAR

• Torque range from 15 Nm to 4,000 Nm
• Modulating torque range from 15 Nm to 1,600 Nm
• Max. number of starts 1,200 c/h
• Output speeds from 4 to 90 rpm
• Limit and torque sensing
• Available with 3-ph AC, 1-ph AC motors
• Handwheel for manual operation

Common Models:

SG05.1-F04+AM01.1 COM:23016716
SG07.1-F07+AM01.1 COM:23016728
SA07.5-F10+GS160.3+AM01,1 COM:13076636
SGR05.1-F07+AM01.1 COM:23020725
SG05.1-F05+AM01.1 COM:23016720

AUMA SG07.1-F07
AUMA SG07.1-F10
AUMA SG07.5-F07
AUMA SG07.5-F10
AUMA SG10.1-F10
AUMA SG12.1-F10
AUMA SA07.1-F07
AUMA SA07.1-F10

AUMA SAR07.1-F07
AUMA SAR07.1-F10
AUMA SA07.5-F07
AUMA SA07.5-F10

AUMA SAR07.5-F07
AUMA SAR07.5-F10
AUMA SA10.1-F10

AUMA SAR10.1-F10
AUMA SA14.1-F14
AUMA SAR14.1-F14

AUMA SA14.5-F14
AUMA SAR14.5-F14
AUMA SA16.1-F16

AUMA SAR16.1-F16
AUMA AM01.1 24V
AUMA AM01.1 4-20mA

AUMA AM02.1 24V
AUMA AM02.1 4-20mA
AUMA AC01.1 24V
AUMA AC01.1 4-20Ma
