Manufacturer : Bently Nevada
Product No. : 330780-91-CN

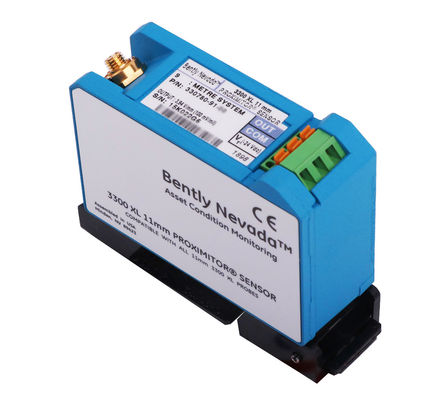

Product type : 3300 XL 11 mm Proximitor Sensor
Made in U.S.A
Can add on Certificate Of Origin (COO)
Total Length and Mounting Option : 91 = 9.0 metres (29.5 feet) system length, DIN mount
Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)
Proximitor Sensor Input : Accepts one noncontacting 3300 XL 11 mm Proximity Probe and Extension Cable.
Power : Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.
Proximitor® Sensor Material: A380 aluminum
Operating Temperature: -35°C to +85°C (-31°F to +185°F)
Storage Temperature: -51°C to +100°C (-60°F to +212°F)
Weight : 0.255 Kg
Shipping weight : 1.5 Kg
