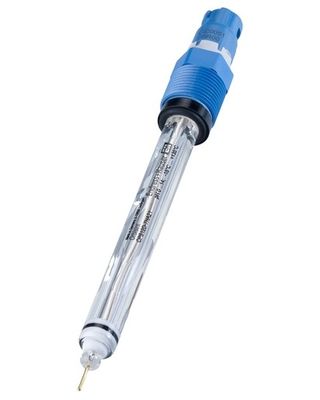

Hot selling E+H original CPS12D-7PA21 Digital ORP sensor Orbisint CPS12D

Description:

Manufacturer : Endress+Hauser

Product name : Orbisint CPS12D

Product type : Digital ORP sensor Orbisint CPS12D

Memosens glass electrode for standard application

Extended order code : CPS12D-7PA21

7-Version : Basic version

PA-Measuring surface : Platinum

2-Shaft length : 120 mm

1-Approval : Non-hazardous area

Weight 0.1 kg / 0.2 lb.


Material
Electrode shaft : glass, suitable for processes
Redox measuring element : platinum ring or gold pin
Diaphragm : ring-shaped Teflon® diaphragm, sterilisable

Reference system : Ag/AgCl lead with Advanced Gel 3 M KCl, AgCl free

Shipping Weight : 2 Kg

Additional Informaiton:
Memosens glass electrode for standard applications
Orbisint CPS12D is the digital all-rounder for process and environment technology. It measures reliably and accurately even in hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money. Thanks to Memosens digital technology, CPS12D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

Benefits
Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

Various measuring elements for application in oxidizing or reducing media

Maximum process safety through non-contact, inductive signal transmission

Enables predictive maintenance due to storage of sensor and process-specific data

Reduced operating costs thanks to minimized process downtime and extended sensor lifetime

Show less


Field of application

Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Paper industry
- Power plants (e.g. flue gas washers)
- Incineration plants

Water treatment:
- Drinking water
- Cooling water
- Well water

With ATEX, FM, CSA approval for use in hazardous areas.

Show less

Features and specifications

ORP / Redox
Measuring principle
Sensor ORP / Redox

Application
Standard applications in process and environment
Long-term monitoring of quiet stable processes

Characteristic
Digital, contactless electrode with Memosens technology
Very robust, heavy-duty applications, high pressure version

Measurement range
-1500 mV to +1500 mV

Measuring principle
Gel compact electrode with teflon diaphragm and double gel reference
Measuring part as gold-pin or platin ring

Design
All shaft lengths with temperature sensor

Advanced gel technology

Inductive, digital data transfer with Memosens technology

Material
Glass electrode with teflon diaphragm

Dimension
Diameter: 12 mm (0.47 inch)
Shaft lengths: 120, 225 and 360 mm
(4.72, 8.86 and 14.17 inch)

Process temperature
-15 to 135 °C
(5 to 275 °F)

Process pressure
0 to 16 bar
(0 to 232 psi)

Temperature sensor
NTC 30k

Ex certification
ATEX II 1G EEX ia IIC T3/T4/T6

FM/CSA Class 1 Div.2, in combination with CM42 and CPM153 transmitters

Ingres protection
IP68

Additional certifications
Biocompatibility validated according to ISO 10993-5:1993 and USP(current version)
TÜV certificate for pressure resistance up to 16 bar with triple overpressure safety
Electromagnetic compatibility complies with EN 61326:1997
