| MOQ: | 1PC |
| Price: | US$4099 |
| Standard Packaging: | factory original |
| Delivery Period: | 4-6days |
| Payment Method: | T/T |
| Supply Capacity: | 50PCS/MONTH |

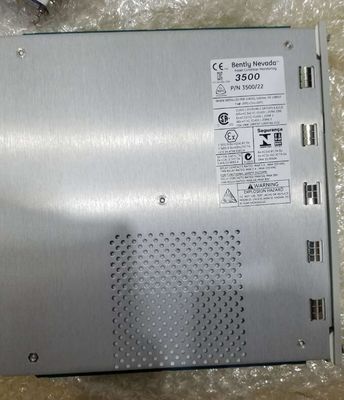

Bently Nevada 3500/22-01-01-00 3500/22M Transient Data Interface
The 3500 Transient Data Interface (TDI) is the interface between the 3500
monitoring system and GE’s System 1® machinery management software. The
TDI combines the capability of a 3500/20 Rack Interface Module with the data
collection capability of a communication processor such as TDXnet.
The TDI operates in the RIM slot of a 3500 rack in conjunction with the M series
monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and
transient waveform data and pass this data through an Ethernet link to the host
software. Static data capture is standard with the TDI, however using an
optional Channel Enabling Disk will allow the TDI to capture dynamic or transient
data as well. The TDI features improvements in several areas over previous
communication processors and incorporates the Communication Processor
function within the 3500 rack.
Ordering Information
List of Options and Part Numbers
3500/22M TDI Module and I/O
3500/22-AXX-BXX-CXX
A: Transient Data Interface Type
0 1 Standard (Use for standard
monitoring applications)
0 2 TMR (Use only for applications
that require a Triple Modular
Redundant Configuration).
B: I/O Module Type
0 1 10Base-T/100Base-TX
Ethernet I/O module
0 2 100Base-FX (Fiber Optic)
Ethernet I/O module
C: Agency Approval Option
0 0 None
0 1 CSA/NRTL/C
0 2 CSA/ATEX
Spares
288055-01
Standard Transient Data Interface
Module
288055-02
TMR Transient Data Interface
Module
146031-01
10Base-T/100Base-TX I/O Module
146031-02
100Base-FX (Fiber Optic) I/O
Module
147364-01
3500 Buffered Signal Output
Module
161580-01
3500/22M TDI Operation and
Maintenance Manual
164466-01
Network Accessories Datasheet
Our Advantage:
Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
