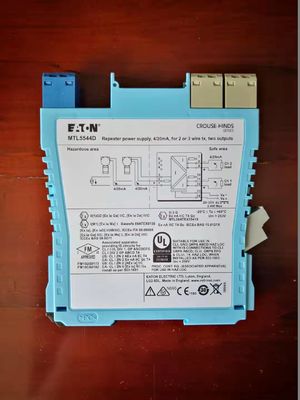

MTL5544D MTL Instruments Repeater Power Supply

MTL5544D MTL Instruments Repeater Power Supply
MTL5544D MTL Instruments Repeater Power Supply

Large Image :  MTL5544D MTL Instruments Repeater Power Supply

Product Details:
Place of Origin: UK
Brand Name: MTL
Certification: ROHS
Model Number: MTL5544D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100+pc+on stock
Detailed Product Description
Number Of Channels: One Location Of Transmitter: Zone 0, IIC, T4–6 Hazardous Area If Suitably Certified Div. 1, Group A Hazardous Location
Signal Range:: 4 To 20mA Under/over-range:: 0 To 24mA
Transmitter Voltage: 16.5V At 20mA Transfer Accuracy At 20°C: Better Than 15µA
Response Time: Settles To Within 10% Of Final Value Within 50µs Communications Supported: HART (terminals 1 & 2, Output Ch 1 Only)

MTL5544D MTL Instruments Repeater Power Supply

The MTLx544D provides a fully-floating dc supply for energising a
conventional 2- or 3-wire 4/20mA transmitter located in a hazardous
area, and repeats the current in other circuits to drive two safe-area
loads. For HART 2-wire transmitters, the unit allows bi-directional
transmission of digital communication signals superimposed on the
4/20mA loop current. Separately powered current sources, such
as 4-wire transmitters, can be connected but will not support HART
communication.
