EJA210E-JMS4G Yokogawa Flange Mounted Differential Pressure Transmitter

EJA210E-JMS4G Yokogawa Flange Mounted Differential Pressure Transmitter

Product advantages:

1

2

3

4

5

6

Product applications:

1

2

3

4

5

Product description:

1

2

3

4

5

Product features:

• Manufacturer : Yokogawa

• Product No. : EJA210E-JMS4G-917DN-WA13C2HW00-B/D4/TF1/M1W/T52/N4

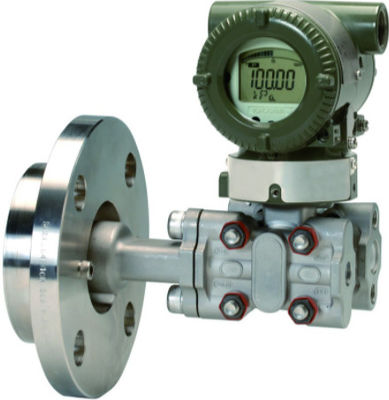

• Product type : EJA210E Flange Mounted Differential Pressure Transmitter

• Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)

• Measurement span (capsule) : M = 1 to 100kPa (4 to 400 inH2O)

• Low pressure side wetted parts material : S = Cover flange and process connector ASTM CF-8M,Capsule Hastelloy C-276 (Diaphragm),F316L SST, 316L SST (Others),Capsule gasket Teflon-coated 316L SST,Drain/Vent plug 316 SST

• Process connections : 4 = with 1/2 NPT female process connector

• Coverflange bolts and nuts material : G = 316L SST

• Installation : 9 = Horizontal piping type and left side high pressure

• Amplifier housing : 1 = Cast aluminum alloy

• Electrical connection : 7 = 1/2 NPT female, two electrical connections with a blind plug

• Integral indicator : D = Digital indicator

• N = Always N

• Process connection style : W = Flush type

• Flange rating : A1 = ANSI class 150

• Flange size : 3 = 3-inch (80mm)

• Flange material : C = 316 SST

• Gasket contact surface : 2 = Flat (no serration)

• Wetted parts material (high pressure side) : HW = 316L SST# Diaphragm, 316 SST# Others

• Flushing connection ring : 0 = None

• Extension : 0 = None

• Fill fluid : B = For general use (Silicone oil) , –40 to 120°C Process temperature, –40 to 85°C Ambient temperature.

• Calibration units : D4 = M calibration (kgf/cm2 unit)

• Teflon film : TF1 = Diaphragm protection from sticky process fluid by FEP Teflon film attached with fluorinated oil. Operation range: 20 to 150°C, 0 to 2 MPa (Not applicable for vacuum service).

• Material certificate : M1W = For Flush type, High Pressure side: Process flange, Block, Low Pressure side: Cover flange, Process connector

• Pressure test/ Leak test certificate : T52 = ANSI/JPI Class 150 3 MPa (430 psi)

• Wired tag plate : N4 = 316 SST tag plate wired onto transmitter

• Weight : 8.3 Kg

• Shipping weight : 11 Kg
