Product Details:
Payment & Shipping Terms:
|
| Measuring Principle: | Ultrasonic Return-time Measurement | Application: | Continious Interface Measurement In Sedimentation Basins |
|---|---|---|---|
| Installation: | Submerged Sensor With Fixed Cable | Measurement Range: | 0.3 To 10 M (1 To 32 Ft) |
| Material: | Sensor: ABS And Epoxy Resin Wiper: EPDM Housing: Polyamide | Model: | CUS71D-AA1A |
| Origin: | Germany | Warranty: | 12 Months |
| High Light: | Cus71d Endress Hauser Turbimax,Ultrasonic endress hauser turbimax,15m Turbimax Cus71d |
||

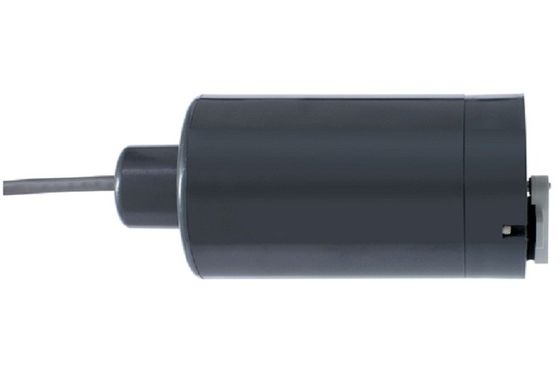

E+H Ultrasonic interface sensor Turbimax CUS71D-AA1A Memosens immersion sensor
Manufacturer : Endress+Hauser
Product No. : CUS71D-AA1A
Product type : Ultrasonic interface sensor Turbimax CUS71D
Memosens immersion sensor for sedimentation tanks in water, wastewater and utilities
Turbimax CUS71D continuously monitors the separation and transition zones in clarification and settling tanks, ensuring safe, economic and efficient sedimentation processes.
It provides you with reliable, real-time measured values in real-time for quick control of valves and actuators.
Turbimax CUS71D is ideal sensor for every measuring task - from protection of downstream water in wastewater treatment plants to optimization of backwash times in waterworks.
Product nameTurbimax CUS71D
Order codeCUS71D-AA1A
AA-Approval: Non-hazardous area
1-Sensor Version : Standard
A-Cable Length : 15m (48 ft), crimp sleeves
Dimensions : See "Installation conditions"
Standard sensor : 1.02 kg (2.25 lb)
Sensor with wiper : 1.25 kg (2.75 lb)
Materials
Sensor : ABS and epoxy plastic
Wiper : Rubber
Process connections : G1 and NPT ¾'
Shipping Weight : 2.5 Kg
Turbimax CUS71D continuously monitors the separation and transition zones in clarification and settling tanks, ensuring safe, economic and efficient sedimentation processes. It provides you with reliable, real-time measured values in real-time for quick control of valves and actuators. Turbimax CUS71D is ideal sensor for every measuring task - from protection of downstream water in wastewater treatment plants to optimization of backwash times in waterworks.
Specs at a glance
Measurement range
0.3 to 10 m (1 to 32 ft)
Process temperature
1 to 50 °C (34 to 122 °F)
Process pressure
Standard version: 0 to 6 bar (0 to 87 psi)
Version with wiper: 0 to 0.3 bar (0 to 4.4 psi)
Field of application
Turbimax CUS71D is an online ultrasonic interface sensor for:
Wastewater treatment plants:
Solid sedimentation measurement
Drinking and process water:
Solid sedimentation measurement
Filter monitoring and filter backwash
Level measurement in marble chip tanks
Utilities of all industries:
Static separation processes
Reuse of process water
Product separation
Flotation processes
