| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | CARTON |
| Delivery Period: | Negotiable |
| Payment Method: | T/T |
| Supply Capacity: | 500+pcs+on stock |

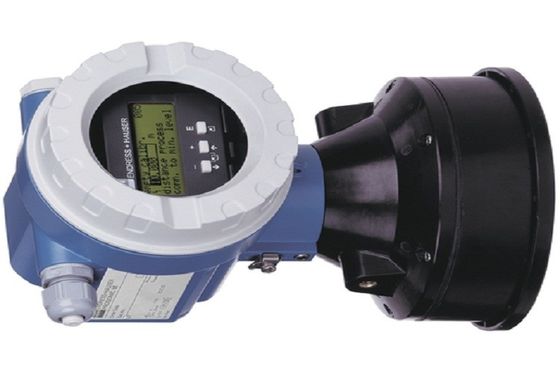

Time-of-Flight Prosonic FMU43-APG2A2
Description:
Estimated Lead Time : Usually ships in 1 - 10 working days.
Manufacturer : Endress+Hauser
FMU43-APG2A2
FMU43 - Product designation Ultrasonic Level Measurement
A -Certificates : Variant for non-hazardous area
P -Process connection/material : Flange DN 100/ANSI 4"/JIS 16K100, PP (universal slip-on flange included)
G -Power supply/communication : 4 wire, 90...253 VAC / 4-20mA HART
2 - Display / on-site operation : 4-line display VU331, Envelope curve display on site
A - Housing : Aluminium F12 housing coated to IP68 NEMA 6P
2 - Screw union/entry : M20x1.5 screw union
Weight kg (lbs) : approx. 3.5 (7.72)
Shipping Weight : 5 Kg
Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 15m
The Prosonic FMU43 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Specs at a glance
Accuracy
+/- 4 mm or +/- 0.2 %of set measuring range 1)
Process temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)
Process pressure absolute / max. overpressure limit
0.7 bar ... 2.5 bar abs
(10 psi ... 36 psi)
Max. measurement distance
7 m (23 ft)
Main wetted parts
unsaturated polyester, 316 Ti
|
|
