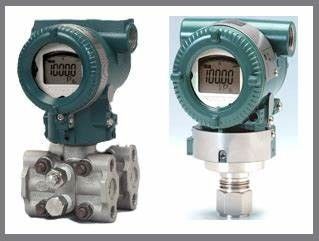

EJA430E-DAS4G Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto
Description:
Manufacturer : Yokogawa
Product No. : EJA430E-DAS4G-31ED/FF1/D3/S2/C1/T01
Product type : Gauge Pressure Transmitter
EJA430E : Gauge pressure transmitter
D - Output signal : 4 to 20 mA DC with digital communication (BRAIN protocol)
A - Measurement span (capsule) : 0.03 to 3.5 MPa (4.3 to 500 psi)
S - Wetted parts material
Cover flange and process connector : ASTM CF-8M
Capsule : Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others)
Capsule gasket : Teflon-coated 316L SST
Vent/Drain plug : 316 SST
4 - Process connections : with 1/2 NPT female process connector
G - Bolts and nuts material : 316L SST
3 - installation : Vertical piping, right side high pressure, and process connection down side
1 - Amplifier housing : Cast aluminum alloy
E - Integral indicator : Digital indicator with the range setting switch (push button)
D - Mounting Bracket : 304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping)
FF1 - Factory Mutual (FM) : FM Explosionproof Approval *1 Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA 250 Explosionproof for Class I, Division 1, Groups B, C and D, Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G, in Hazardous locations, indoors and outdoors (Enclosure: Type 4X) “FACTORY SEALED, CONDUIT SEAL NOT REQUIRED.” Temperature class: T6, Amb. Temp.: –40 to 60°C (–40 to 140°F)
D3 - Calibration units : bar calibration (bar unit)
S2
C1 - Output limits and failure operation : Failure alarm down-scale : Output status at CPU failure and hardware error is -5%, 3.2mA DC or less for 4 to 20 mA output type, and -5%, 0.8V DC or less for 1 to 5 V output type.
T01 - Pressure test/ Leak test certificate : Test Pressure: 3.5 MPa (500 psi)
Shipping weight : 8 Kg
| Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer EJA110E | |||||
| L Capsule | M Capsule | H Capsule | V Capsule | ||
| Range | -10 to 10 kPa | -100 to 100 kPa | -500 to 500 kPa | -0.5 to 14 MPa | |
| (-40 to 40 inH2O) | (-400 to 400 inH2O) | (-2000 to 2000 inH2O) | (-70 to 2000 psi) | ||
| Span | 0.5 to 10 kPa | 1 to 100 kPa | 5 to 500 kPa | 0.14 to 14 MPa | |
| (2 to 40 inH2O) | (4 to 400 inH2O) | (20 to 2000 inH2O) | (20 to 2000 psi) | ||
| Accuracy | ±0.075% | ±0.065% | ± 0.065% | ±0.065% | |
| Degrees of Protection | IP67, NEMA 4X, and JIS C0920 immersion proof | ||||
| Certificates | FM, CENELEC ATEX, CSA, IECEx | ||||
| Output | 4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication | ||||
| Supply Voltage | BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) | ||||
| Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) | |||||
| Ambient temperature | -40 to 85 deg C (-40 to 185 deg F) (general use type) | ||||
| -30 to 80 deg C (-22 to 176 deg F) (with integral indicator) | |||||
| Process Temperature | -40 to 120 deg C (-40 to 248 deg F) (general use type) | ||||
| Maximum Working Pressure | 16MPa(2300psi) | ||||
| 3.5MPa(500psi) for L capsule with special materials | |||||
| Mounting | 2-inch pipe mounting | ||||
| Wetted parts material | Capsule | SUS316L(Diaphragm material is Hastelloy C-276), | |||
| Hastelloy C-276, Tantalum, Monel | |||||
| Cover flange | SUS316, Hastelloy C-276, Monel | ||||
| Housing | Cast aluminum alloy or SUS316 equivalent stainless steel (optional) | ||||
Common Models:
| EJA430E-DAS4G-717DD |
| EJA430E-DAS4J-717DD |
| EJA430E-JAS5G-93DEB |
| EJA430E-JBS4C-93DEB |
| EJA430E-FAS5G-919DB |
| EJA430E-DBS4J-917DB/KF22 |
| EJA430E-DAS4J-710DD/D3/C1 |
| EJA430E-JAS4G-917DB/X2/A/D3/M11 |
| EJA430E-JAS4G-722ND/KU22/A/D4 |
| EJA430E-JAS4G-93CED/KU22/HAC/A |
| EJA430E-JBS5G-93CED/KU22/HAC/A |
| EJA430E-JBS4G-93CED/KU22/HAC/A |
| EJA430E-JBS5C-91DDB/KU22/X2/T12 |
| EJA430E-JAS5J-919DN/KS21/D3/M01/T01/X2 |
| EJA430E-JAS5G-919DB/KU22/X2/D3/M01/T01 |
| EJA430E-JBS5G-919DB/KU22/X2/D3/M01/T12 |
| EJA430E-JAS5G-92DDJ/KS21/A/D3/M01/T01 |
| EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11 |
| EJA430E-FHS4G-919DB/KS26/D3/X2/M11/T11 |
| EJA430E-JHS4G-919DD/KU22/D3/X2/M11/T11 |
| EJA430E-JHS4G-919EB/KU22/D3/X2/M11/T11 |
| EJA430E-JBS5G-919DB/KU22/D3/X2/M01/T12 |
| EJA430E-JBS5G-919DB/KU22/X2/D3/M01/T12 |
| EJA430E-JAS5J-719DD/X2/D3/M01/T01/KU22 |
| EJA430E-JBS5J-719DD/X2/D3/M01/T12/KU22 |
| EJA430E-FAS5G-919DJ/KS26/M01/T01/D3 |
| EJA430E-FAS5G-719DD/KS26/M01/T01/D3 |
| EJA430E-FAS5G-319DD/KS26/M01/T01/D3 |
