| MOQ: | 1PC |
| Price: | negotiable |
| Standard Packaging: | factory original |
| Delivery Period: | 8-10weeks |
| Payment Method: | T/T |
| Supply Capacity: | 50PCS/MONTH |

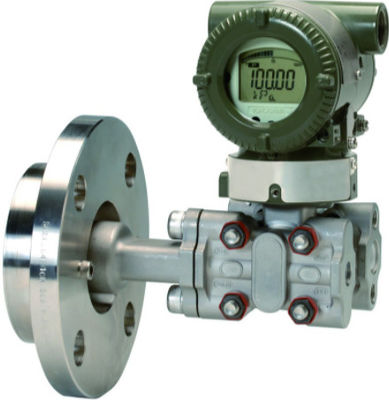

EJA210E-DMS4J Yokogawa Flange Mounted Differential Pressure Transmitter
Description:
Manufacturer : Yokogawa
Product No. : EJA210E-DMS4J-912DN-EJ14A2SE01-B/D4
Product type : EJA210E Flange Mounted Differential Pressure Transmitter
Output signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol)
Measurement span (capsule) : M = 1 to 100kPa (4 to 400 inH2O)
Low pressure side wetted parts material : S = Cover flange and process connector ASTM CF-8M,Capsule Hastelloy C-276 (Diaphragm),F316L SST, 316L SST (Others),Capsule gasket Teflon-coated 316L SST,Drain/Vent plug 316 SST
Process connections : 4 = with 1/2 NPT female process connector
Coverflange bolts and nuts material : J = B7 carbon steel
Installation : 9 = Horizontal piping type and left side high pressure
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs
Integral indicator : D = Digital indicator
N = Always N
Process connection style : E = Extended type
Gasket contact surface : 2 = Flat (no serration)
Wetted parts material (high pressure side) : WE =Hastelloy C-276 Diaphragm, 316 SST Others, 316 SST pipe
Flushing connection ring : 0 = None
Extension : 1 = Length (X2) = 50mm
Fill fluid : B = For general use (Silicone oil) , –40 to 120°C Process temperature, –40 to 85°C Ambient temperature
Weight : 12.8 Kg
Shipping weight : 16 Kg
Product advantages:
1.The high performance flange mounted differential pressure transmitter EJA210E can be used
to measure levels of densities of solidifying or precipitating liquids.
2. Other key features include quick response, remote set-up using communications
and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low
Power) protocol types are also available.
3.All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power
types, are certified as complying with SIL 2 for safety requirement.
Product Applications:
| EJA210E-JMS4J-912DN-EJ14A2SE01-B |
| EJA210E-JMS5J-912NN-WA13A1SW00-B/D4 |
| EJA210E-DMS4J-912DN-EJ14A2SE01-B/D4 |
| EJA210E-JHS4J-912DN-EA14A1SE01-B/D4 |
| EJA210E-JMS3J-919EN-WA12B2WW00-B/D4 |
| EJA210E-JHS4J-917DN-EA14B1SE03-B/D3 |
| EJA210E-DHS4J-912NN-EJ14A2SE01-B/D4 |
| EJA210E-JMS4J-912DN-WA12A2WW00-B/D4 |
| EJA210E-JMS5G-917EN-WD22C2WW00-B |
| EJA210E-JMS5G-919DN-WA12C1WW00-B/KU22/D4/X2/M0W/T52 |
| EJA210E-JHS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56 |
| EJA210E-JMS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56 |
| EJA210E-JMS4G-92DDN-WA23C2HW00-B/KS21/A/D4/M1W/T56 |
Why choose GSI?
1. 100% original product, 100% quality assurance.
2. Varied payment methods.
We adopt T/T, western union and paypal and Currency in EURO,USD,RMB
3.SHIPPING:
We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
