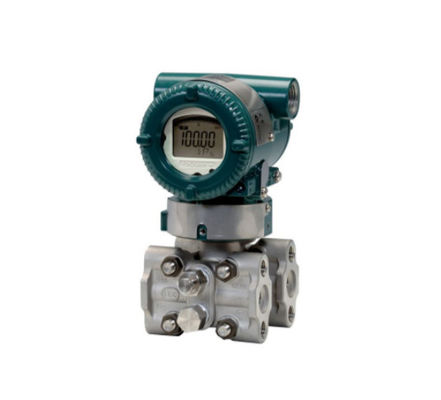

EJX110A Yokogawa EJA Pressure Transmitter , 500 KPa Yokogawa Dp Transmitter

EJX110A-FHS5G-914DJ/KS26/M01/T13/D1​ EJX110A Differential Pressure Transmitter

Description:

Manufacturer : Yokogawa
Product No. : EJX110A-FHS5G-914DJ/KS26/M01/T13/D1
Product type : EJX110A Differential Pressure Transmitter
Output signal : F = Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C25T02-01EN)
Measurement span (capsule) : H = 2.5 to 500 kPa (10 to 2000 inH2O)
Wetted parts material : S = Cover flange and process connector ASTM CF-8M *1, Capsule Hastelloy C-276 *2 (Diaphragm)F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST
Bolts and nuts material : G = 316L SST
Installation : 9 = Horizontal piping and left side high pressure
Amplifier housing : 1 = Cast aluminum alloy
Integral indicator : D = Digital indicator
Shipping weight : 5 Kg

Additional Informaiton:

The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.

EJX110A features include:

• ± 0.04% Accuracy (0.025% Accuracy option available)
• ± 0.1% per 15 years Stability
• 90 ms Response Time
• 3,600 psi MWP
• Exida and TUV SIL2 / SIL3 Certified
• Local Parameter Setting (LPS)

Models Reference:

EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter

Important Terms:

1. Place of delivery (EXW/FOB/CIF): EXW

2. Packing cost: For free

3. Unit weight: Kg/lbs 7kg

4. Unit dimensions: (W x L x H) : 40*35*30cm

5. HS Code: 90261000

6. Payment terms: TT

7. Warranty: 12 months
