| Model: | EJA115E-DMS4G-912ED-N00NN0 | Setting: | Local Parameter Setting (LPS) |
|---|---|---|---|
| Accuracy:: | 0.055% Square Root Output Accuracy | Manufacturer: | Yokogawa |
| Warranty: | 12 Months | Product Name: | Low Flow Transmitter |
| Response Time: | 90 Ms ~ 150 Ms | Stability: | 0.1% Per 10 Years Stability (DP) |
| High Light: | 4ma Yokogawa EJA Pressure Transmitter,150 Ms Yokogawa EJA Pressure Transmitter,EJA low flow transmitter |
||

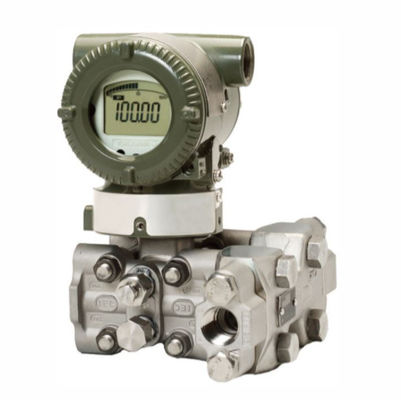

EJA115E-DMS4G-912ED-N00NN0 Yokogawa EJA Low Flow Transmitter
Description:
Manufacturer : Yokogawa
Product No. : EJA115E-DMS4G-912ED-N00NN0
Product type : Low Flow Transmitter
Output signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol)
Measurement span (capsule) : M = 2 to 100 kPa (8 to 400 inH2O)
Wetted parts material : S = Cover flange and process connector ASTM CF-8M , Capsule Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others) , Capsule gasket Teflon-coated 316L SST , Vent/Drain plug 316 SST
Process connections 4 = 1/2 NPT female
Bolts and nuts material : G = For cover flange 316L SST, for process connector 316L SST, for manifold 316L SST
Installation : 2 = Vertical impulse piping type, right side high pressure, manifold upside
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs
Integral indicator : D = Digital indicator
Mounting bracket : D = 304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping)
N = Always N
00 = Always 00
N = Always N
N = Always N
0 = Always 0
Shipping weight : 7KG
Additional Informaiton:
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA115E is Differential Pressure Transmitter in the series that is optimized for low flow applications with the addition of an Integral Flow Orifice (IFO).
EJA115E features include:
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, BRAIN communication.
