EJA118E Dp Type Pressure Transmitter With Remote Diaphragm Seals

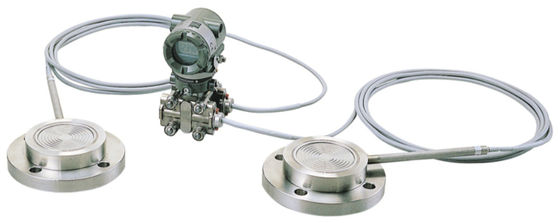

EJA118E-DMSCG-912DB EJA118E DP Transmitter with Remote Diaphragm Seals

Description:

Manufacturer : Yokogawa

Product No. : EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4

Product type : Diaphragm Sealed Differential Pressure Transmitter

Output signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol) (HART 5/HART 7 protocol)

Measurement span (capsule) : M = 2.5 to 100 kPa (10 to 400 inH2O)

S : always S

C : always C

Coverflange bolts and nuts material : G = 316L SST

Installation : -9 = Horizontal piping type and left side high pressure

Amplifier housing : 1 = Cast aluminum alloy

Integral indicator : D = Digital indicator

Mounting bracket : B = 304 SST 2-inch pipe mounting, flat type (for horizontal piping)

Process connection style : W = Flush type

Flange rating : J1 = JIS 10K

Process connection size (Process flange size) : 3 = 3-inch (80 mm)

Flange material : B = 304 SST *11

Gasket contact surface : 2 = Flat (no serration)

Wetted parts material : TW = Tantalum *7 [Diaphragm], Tantalum *7 [Others]

Flushing connection ring : 0 = None

Extension : 0 = None

Fill fluid : A = For general use (silicone oil)*3, –10 to 250°C [Process temperature], –10 to 60°C [Ambient temperature]

Capillary connection : A = Side of diaphragm seal unit

2 : Always 2

Capillary length : 3 = 3 m

Weight : 16.1 Kg

Shipping Weight : 19 Kg

Additional Informaiton:

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.

EJA118E features include:

• ± 0.2% Accuracy
• 200 ms Response Time
• Exida and TUV SIL2 / SIL3 Certified
• Local Parameter Setting (LPS)
• 10-segment Signal Characterizer
• Active Capillary Fill Fluid Density Compensation
