EJA510E Yokogawa EJA Pressure Transmitter , 90 Ms In Line Pressure Transmitter

EJA510E Yokogawa EJA Pressure Transmitter , 90 Ms In Line Pressure Transmitter
EJA510E Yokogawa EJA Pressure Transmitter , 90 Ms In Line Pressure Transmitter EJA510E Yokogawa EJA Pressure Transmitter , 90 Ms In Line Pressure Transmitter EJA510E Yokogawa EJA Pressure Transmitter , 90 Ms In Line Pressure Transmitter

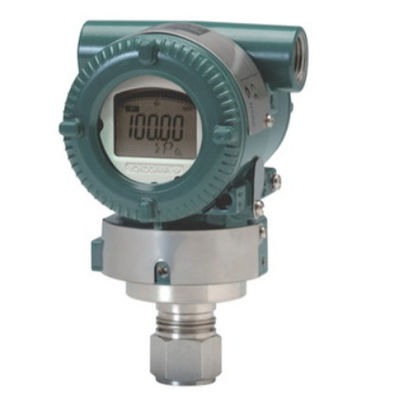

Large Image :  EJA510E Yokogawa EJA Pressure Transmitter , 90 Ms In Line Pressure Transmitter

Product Details:
Place of Origin: JAPAN
Brand Name: YOKOGAWA
Certification: ROHS
Model Number: EJA510E-DAS7N-012DN/D4/HE
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiable
Packaging Details: factory original
Delivery Time: 8-10weeks
Payment Terms: T/T
Supply Ability: 50PCS/MONTH
Detailed Product Description
Model: EJA510E-DAS7N-012DN/D4/HE Maximum Over Pressure: 8,700 Psia
Accuracy:: ± 0.055% Accuracy (0.04% Accuracy Optional) Shipping Weight: 3kg
Product Name: In-Line Mount Absolute Pressure Transmitter Response Time: 90 Ms
Stability: ± 0.2% Stability Per 10 Years Certificate: Exida And TUV SIL 2/3 Certified
Setting: Local Parameter Setting (LPS)
High Light:

EJA510E Yokogawa EJA Pressure Transmitter

,

Absolute Yokogawa EJA Pressure Transmitter

,

90 ms in line pressure transmitter

EJA510E-DAS7N-012DN/D4/HE   EJA510E In-Line Mount Absolute Pressure Transmitter









Description:



Manufacturer : Yokogawa
Product No. : EJA510E-DAS7N-012DN/D4/HE
Product type : EJA510E Absolute Pressure Transmitter

Output signal : J = 4 to 20 mA DC Output with digital communication
Measurement span (capsule) : B = 0.1 to 2 MPa (14.5 to 290 psi)
Wetted parts material : S = Process connector 316L SST # , Diaphragm Hastelloy C-276 *3#, Others 316L SST #
Process connections : 4 = 1/2 NPT female
N = Always N
0 = Always 0
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 7 = 1/2 NPT female, two electrical connections with a blind plug*7
Integral indicator : E = Digital indicator with the range setting switch (push button) *9
Mounting bracket : L = 316 SST 2-inch pipe mounting
Shipping weight : 4Kg









Additional Informaiton:

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA510E is our in-line mount absolute pressure transmitter in the series.





EJA510E features include:



± 0.055% Accuracy (0.04% Accuracy optional)
± 0.2% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
8,700 psia Maximum Over Pressure
Local Parameter Setting (LPS)
Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
