| MOQ: | 1PC |
| Price: | negotiable |
| Standard Packaging: | factory original |
| Delivery Period: | 8-10weeks |
| Payment Method: | T/T |
| Supply Capacity: | 50PCS/MONTH |

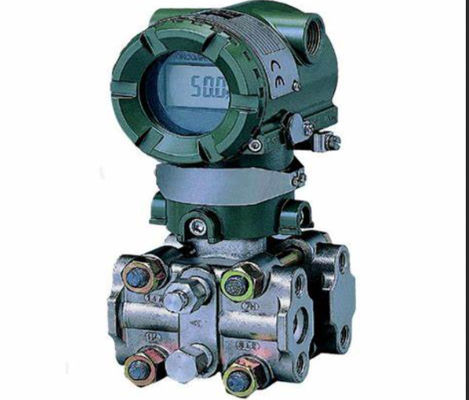

EJA120E-JES4G-912DB EJA120E Draft Range Differential Pressure Transmitter
Description:
Manufacturer : Yokogawa
Product No. : EJA120E-JES4G-912DB
Product Type : Differential Pressure Transmitter
Output Signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : E = 0.1 to 1 kPa (0.4 to 4 inH2O)
Wetted parts material : S
Cover flange and process connector : ASTM CF-8M
Capsule : Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others)
Capsule gasket : PTFE Teflon
Vent/Drain plug : 316 SST
Process connections : 4 = with 1/2 NPT female process connector
Bolts and nuts material : G = 316L SST
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs
Integral indicator : D = Digital indicator
Weight : 3.7 Kg
Shipping Weight : 8 Kg
Additional Informaiton:
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.
EJA120E features include:
Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
EJA530E In-Line Mount Gauge Pressure Transmitter
Important Terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
